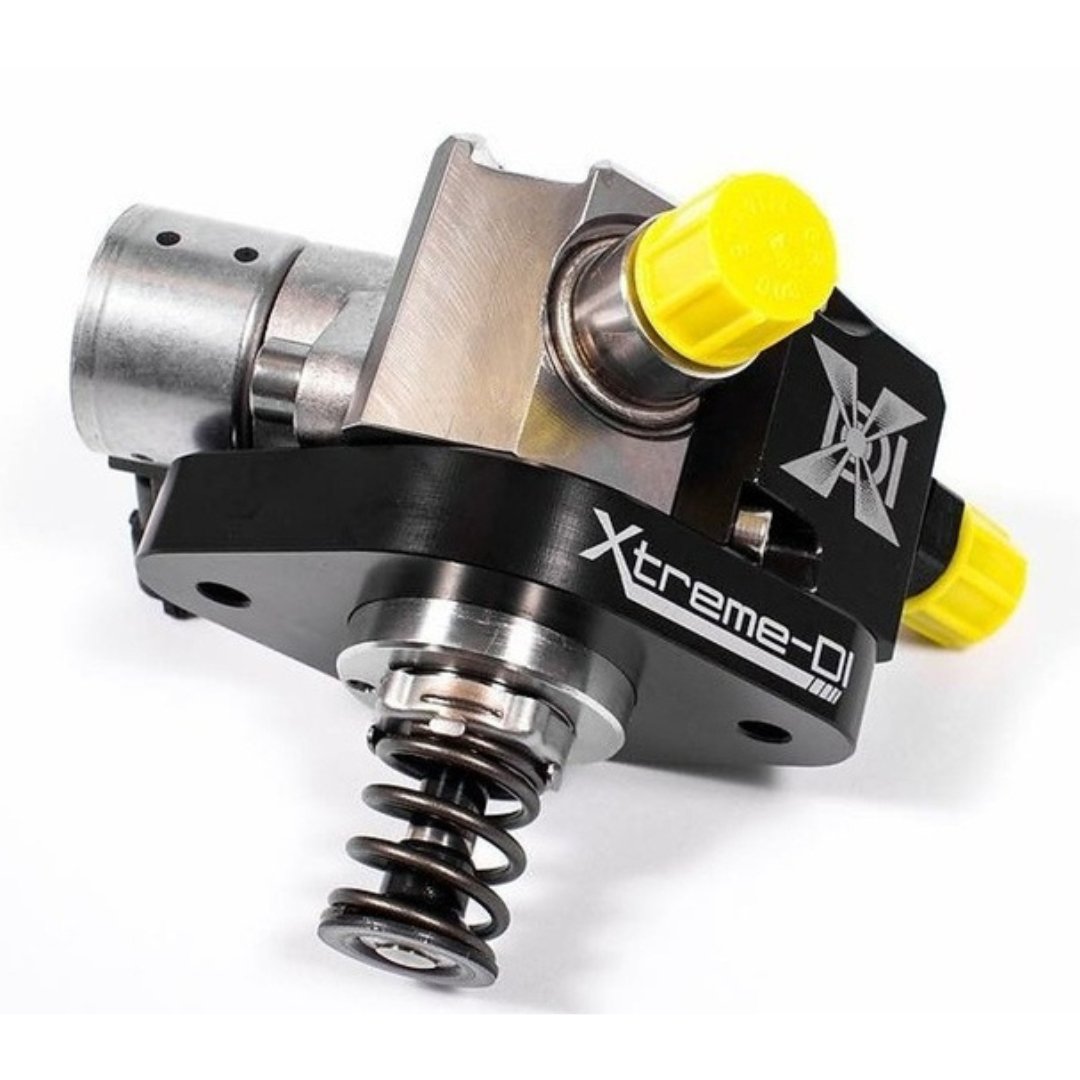

XDI High Pressure Fuel Pump (HPFP) | 17-21 Civic Type R FK8

XDI High Pressure Fuel Pump (HPFP) | 17-21 Civic Type R FK8

Regular price $1,599.00 USD
Regular price Sale price $1,599.00 USD
Sale Sold out
Shipping calculated at checkout.
Earn 1 Point on this purchase. Learn more
Bundle with XDI Injectors


  • 2017 - 2021 Honda Civic Type R FK8



  • Improved Fuel Flow and Horsepower: Perfect for the K20C1-powered Civic Type R and other Direct-Injection vehicles.
  • Simplified Installation: Bolt-on installation without the need for the previous MOtec ECU and engineering support.
  • Optimal Integration: Easily configure with Hondata FlashPro calibrations.
  • Capacity Enhancement: Approximately 36% more capacity than the OEM Bosch pump.


  • Upgrade crucial when installing upgrades like the MHI Stage 2 Turbo or Full-Race Intercooler Kit.
  • Designed specifically for the Civic Type R or K20C powered turbocharged Honda/Acura.
  • Retain 100% direct injection, negating the need for port injection.
  • Achieve increased horsepower safely while supporting conservative air-to-fuel ratios, even at high boost levels.


  • Max Rail Pressure: 250BAR / 3600PSI (+20% over OEM)
  • Housing Material: Durable stainless steel combined with hard-coated aluminum.
  • RPM: Springs rated for 7800RPM (OEM is only rated for 7200RPM).
  • HP Support: 480-500HP with stock injectors. When upgraded with Hondata injectors, it can support 650HP or more with our G Series Turbo Kit.


For Hondata users, XDI provides a unique code with your purchase that will unlock the Hondata XDI HPFP calibration in the FlashPro software.

XDI FK8 Fuel Injectors are available upon request. However, please note that the calibration for the XDI injectors is not included with Hondata FlashPro at this time.
