HKS Intercooler Kit | 23+ Civic Type R FL5, 23+ Integra Type S DE5

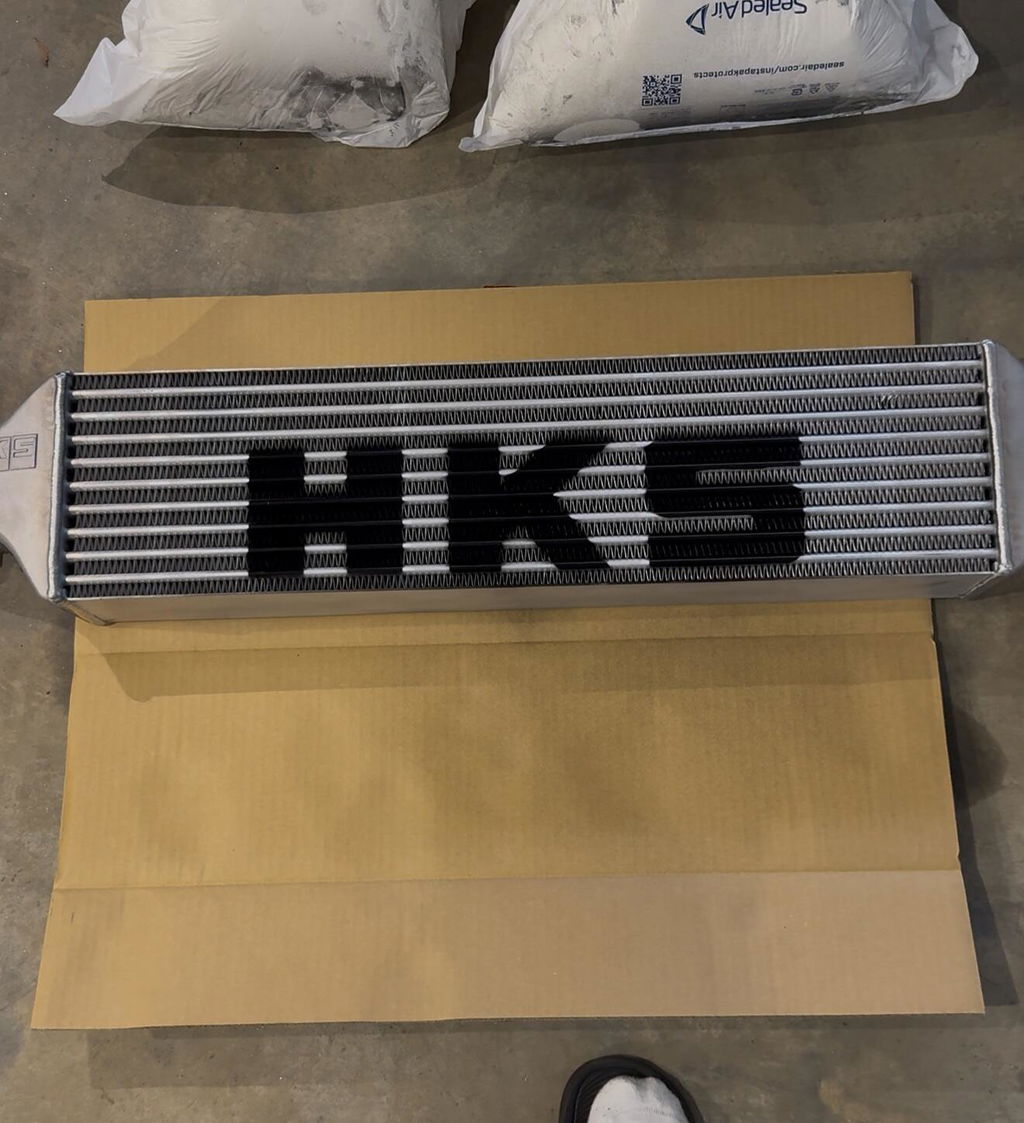

Intercooler Core

• A huge 22.4% increase in core’s area leads to immense improvement in cooling.
• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
• The core is designed to be also installed with OEM piping

Piping Kit

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

■Configuration

[Core Only]

• Intercooler core
• Masking sheet for logo spray

[Piping Kit Only]

• Aluminum bent pipe (IN/OUT)
• Cast pipe (IN/OUT)
• Silicone hose
• Hose band
• Bracket (IN/OUT)
• Special bolts and nuts

[Full Kit]

• Core only + piping kit


■Important Notes

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.

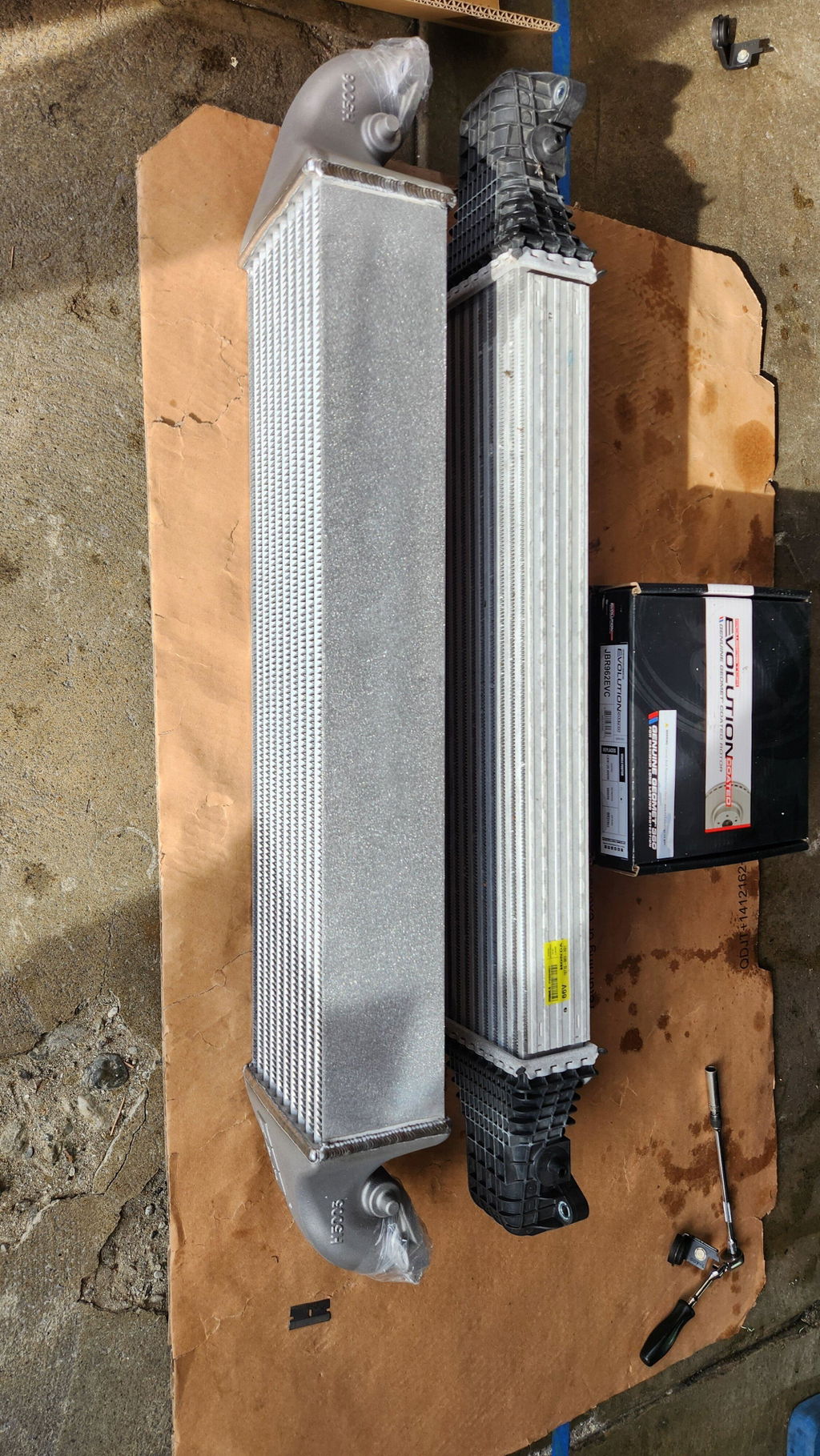

■Core Size Comparison

■Performance Comparison

■Piping Comparison

	HKS	Stock
Exterior
Material & specs	in No.1：Aliminum bent pipe (inner diameter D60) in No.2：Aliminum casting (bracket separate) out No.1：Aliminum casting (bracket separate) out No.2：Aliminum bent pipe	in No.1：Rubber hose (inner diameter D55) in No.2：Aliminum casting (bracket separate) out No.1：Resin (with bracket) out No.2：Rubber hose

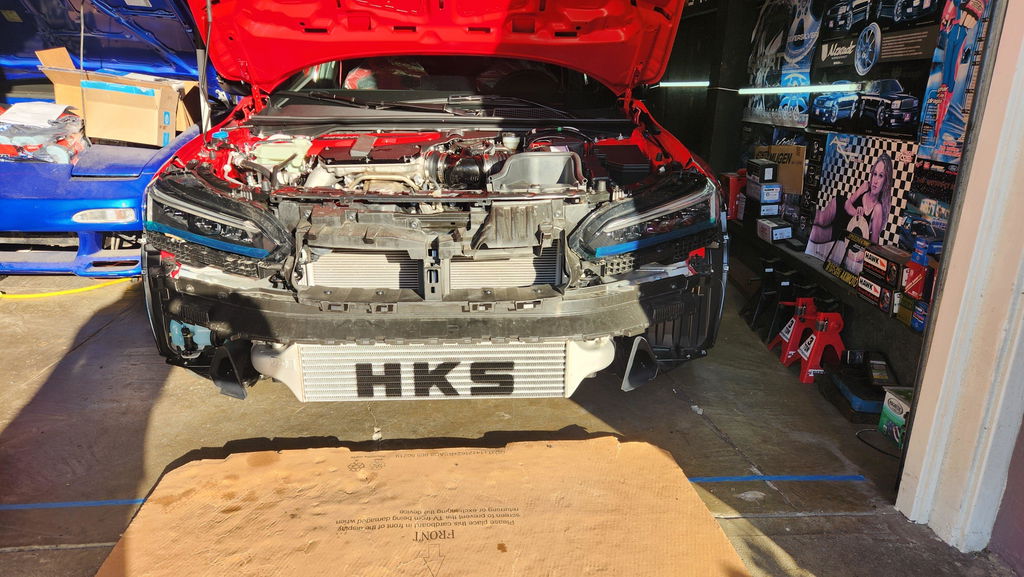

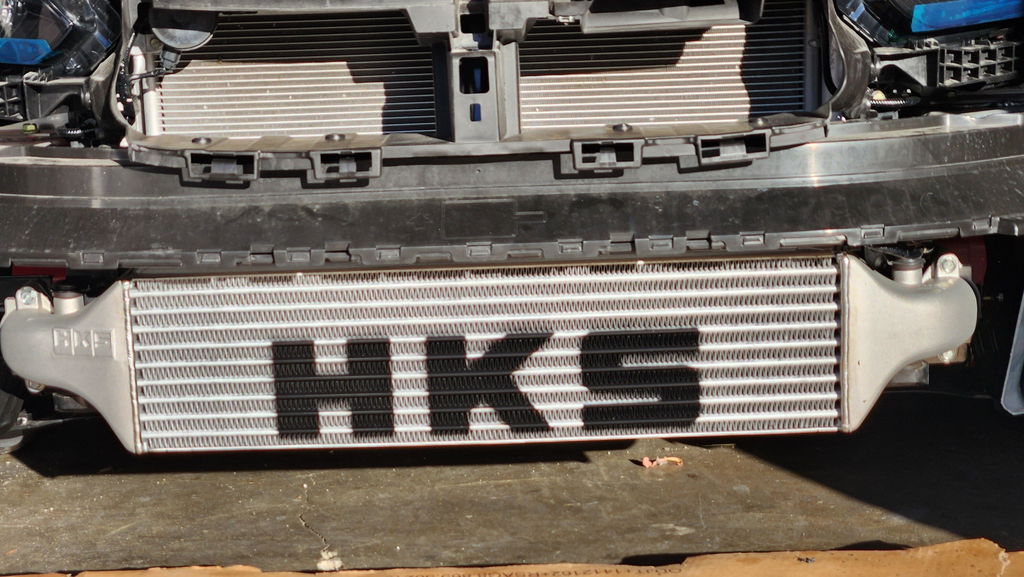

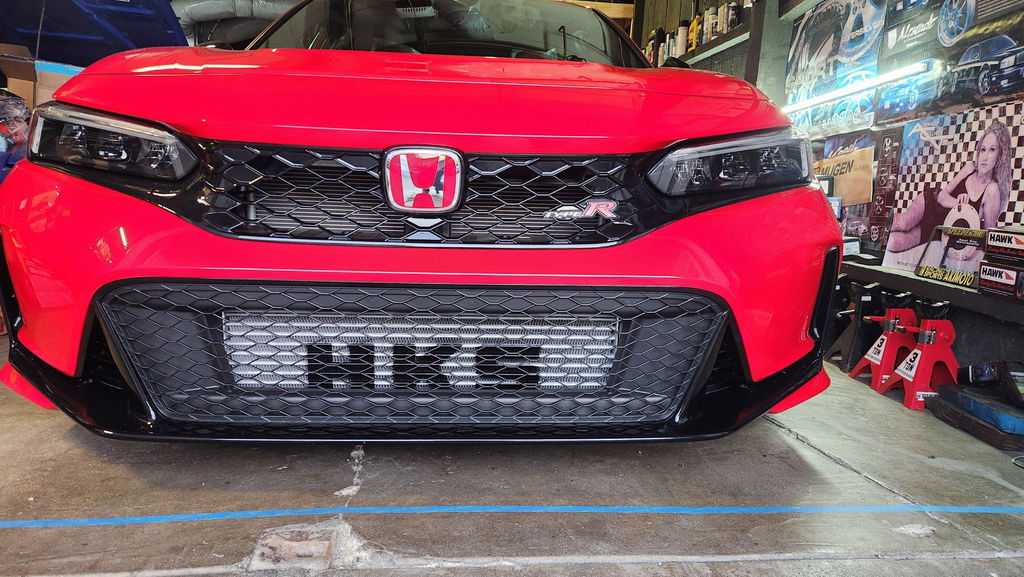

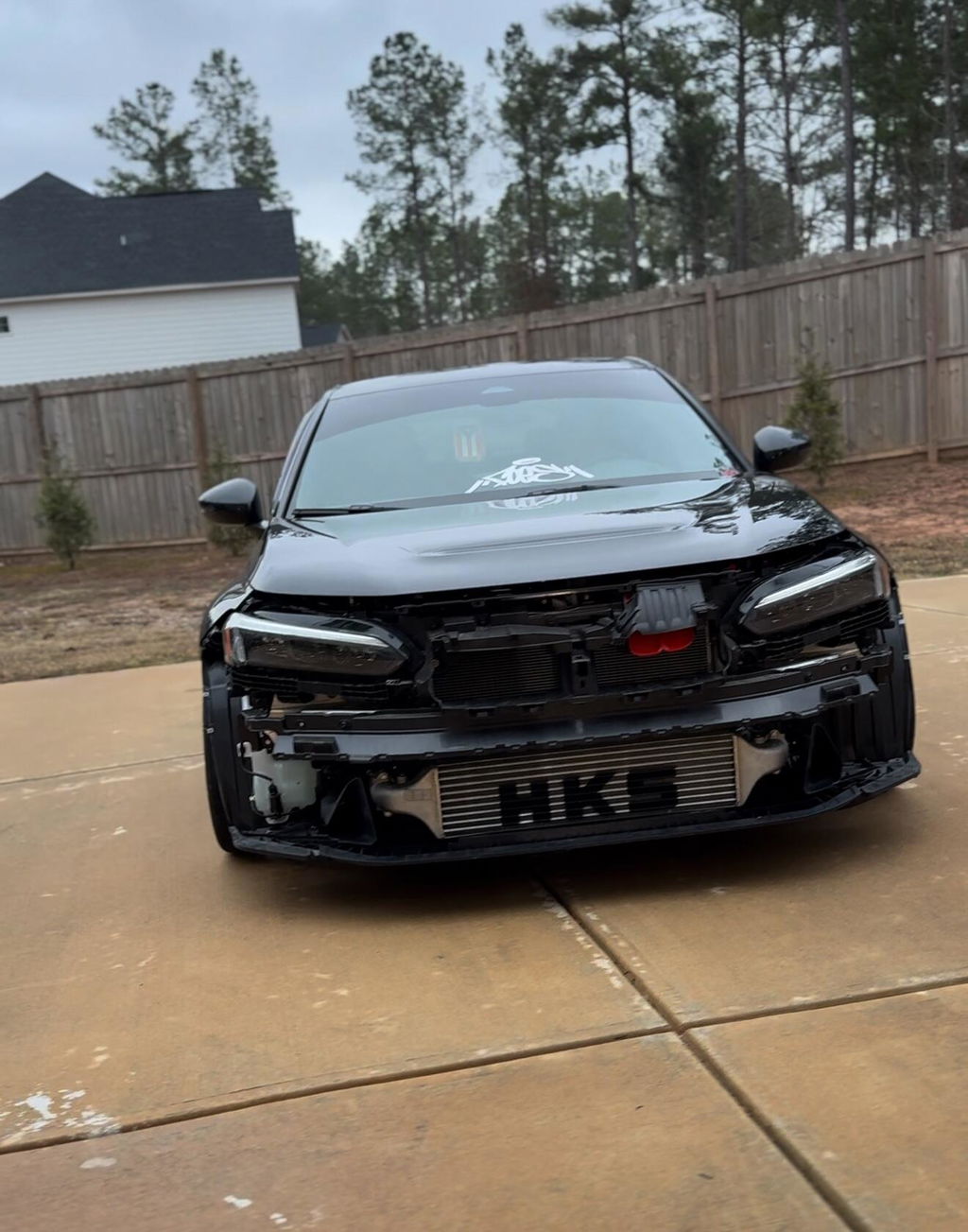

■Installation Images
