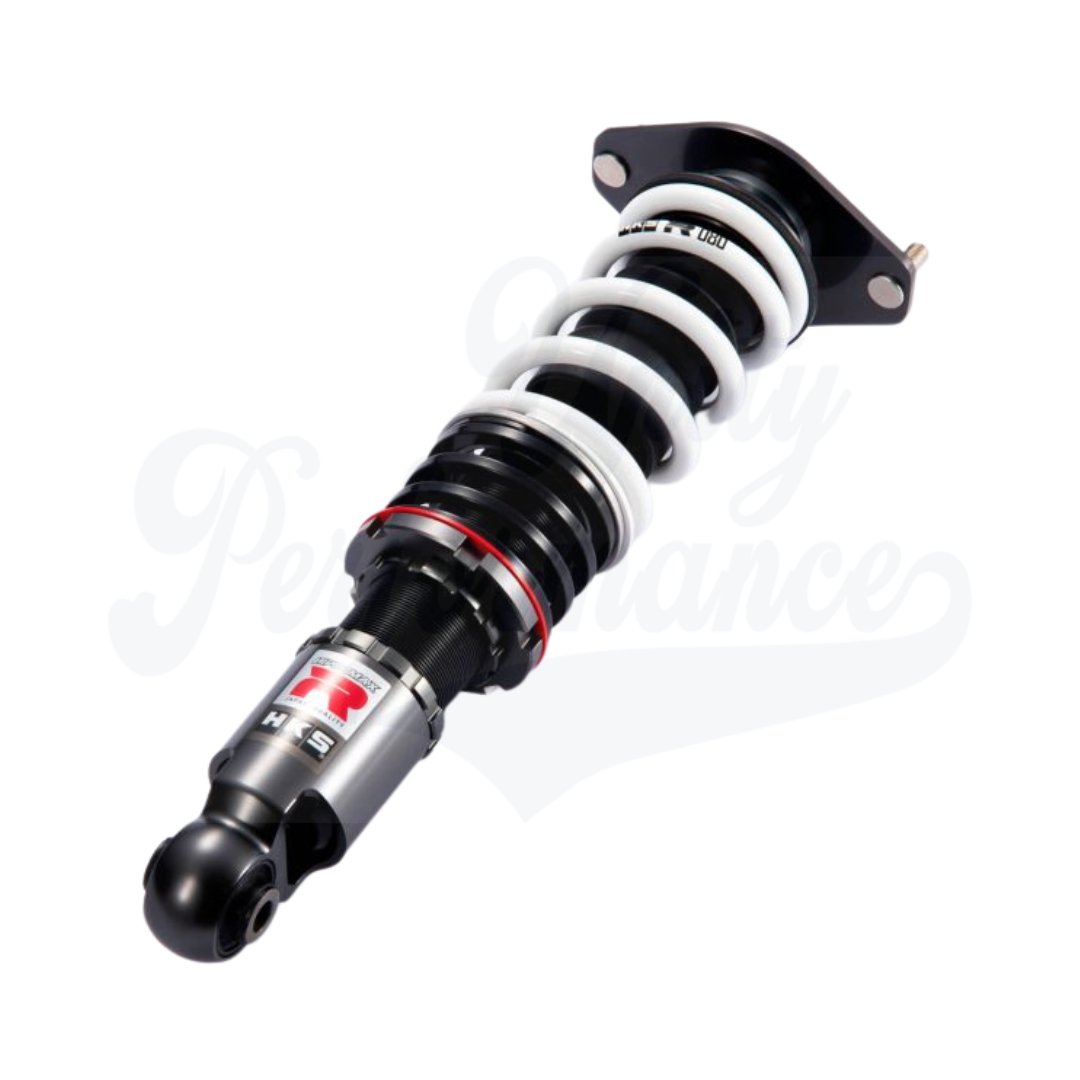

HKS Hipermax R Coilover Kit | 17-21 Civic Type R FK8

Fits:

• 2017 - 2021 Honda Civic Type R FK8

_______

The HIPERMAX R Series has evolved all of handling, traction, and ease of fit to a new series by concentrating the technological capabilities cultivated over the past 9 years since the launch of MAX IV SP. The HIPERMAX R Series has achieved overwhelming performance that is unrivaled by any other brand.

Spring Rate: Front = F=137 N/mm (14 kgf/mm) / Rear = 137 N/mm (14 kgf/mm)
Vehicle Height (Highest - Lowest)
- FRONT: -18mm (-15mm to -39mm)
- REAR: -13mm (+8mm to -35mm)

Single Tube Damper Design

Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.

Dust Boot

Protect the shaft from the flying stones.

PNE Coating

Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.

M Shaft (Φ46 normal type)

With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.

Adopted Pillow Ball Upper Mount

For more accurate and sharp steering.

New Design Needle

Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.

Reduction of Unsprung Weight

In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminum. (Not for all vehicles)

30 Step Damping Force Adjustment

30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
