BlackVue
BlackVue DR770X-Plus Box 3-Ch Dash Cam 64GB | Universal
BlackVue DR770X-Plus Box 3-Ch Dash Cam 64GB | Universal
Earn [points_amount] when you buy this item.
Couldn't load pickup availability
Over the years I've captured everything on dashcams from track days, to near-miss accidents, and security footage. Thankfully I've never been in a crash, but if I ever need footage from an impact I know I can rely on BlackVue to deliver it with crisp audio and video quality, as I've personally had one for over 5 years!!
Whenever I need footage I just open up my app and download what I need. I've even used the Live feature to view my car's surroundings from anywhere as I have it connected to various Wi-Fi setups at my home and the store.
______
The DR770X Box-3CH Pro is a triple-channel dash cam with BlackVue Cloud connectivity.

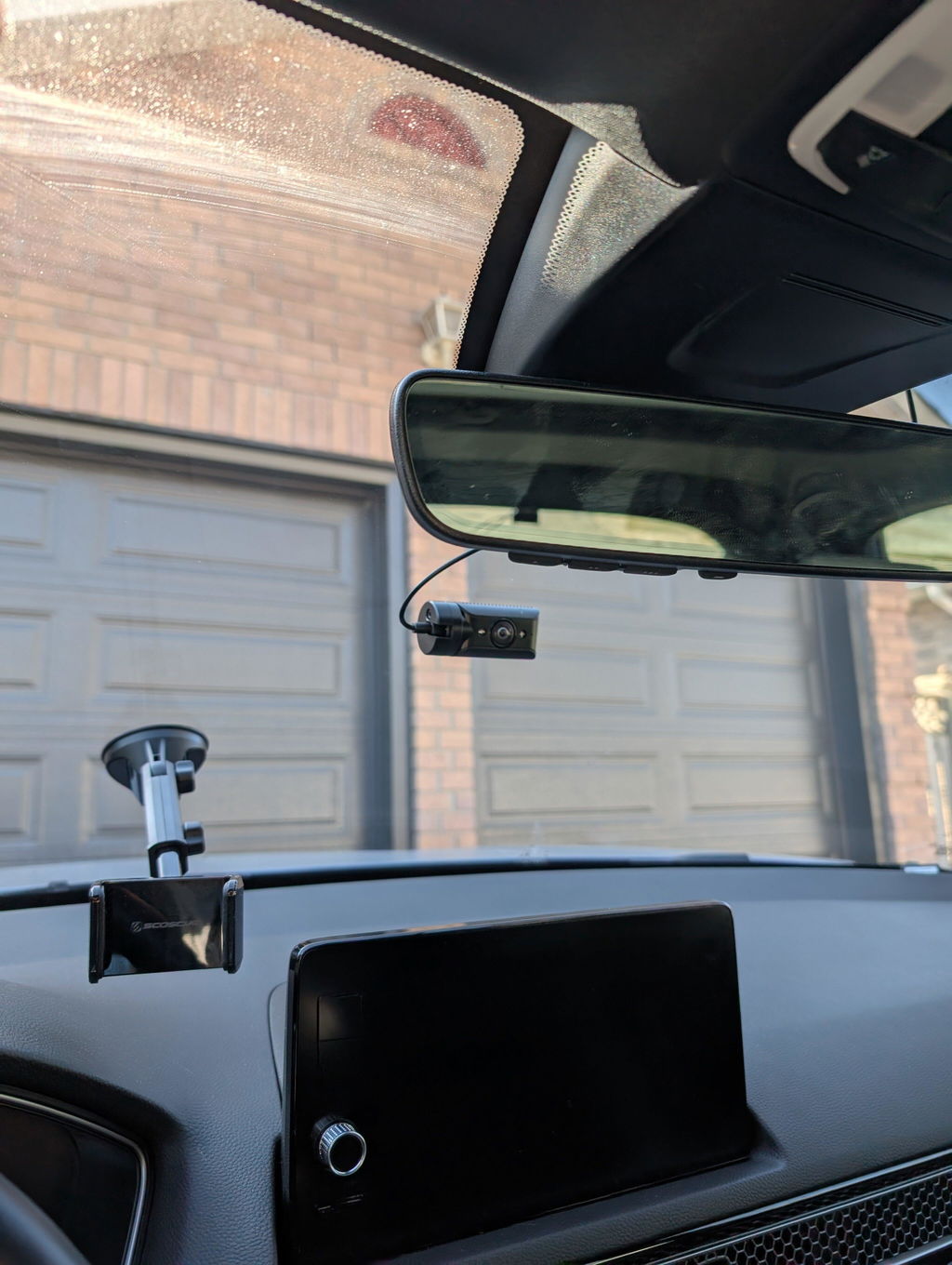

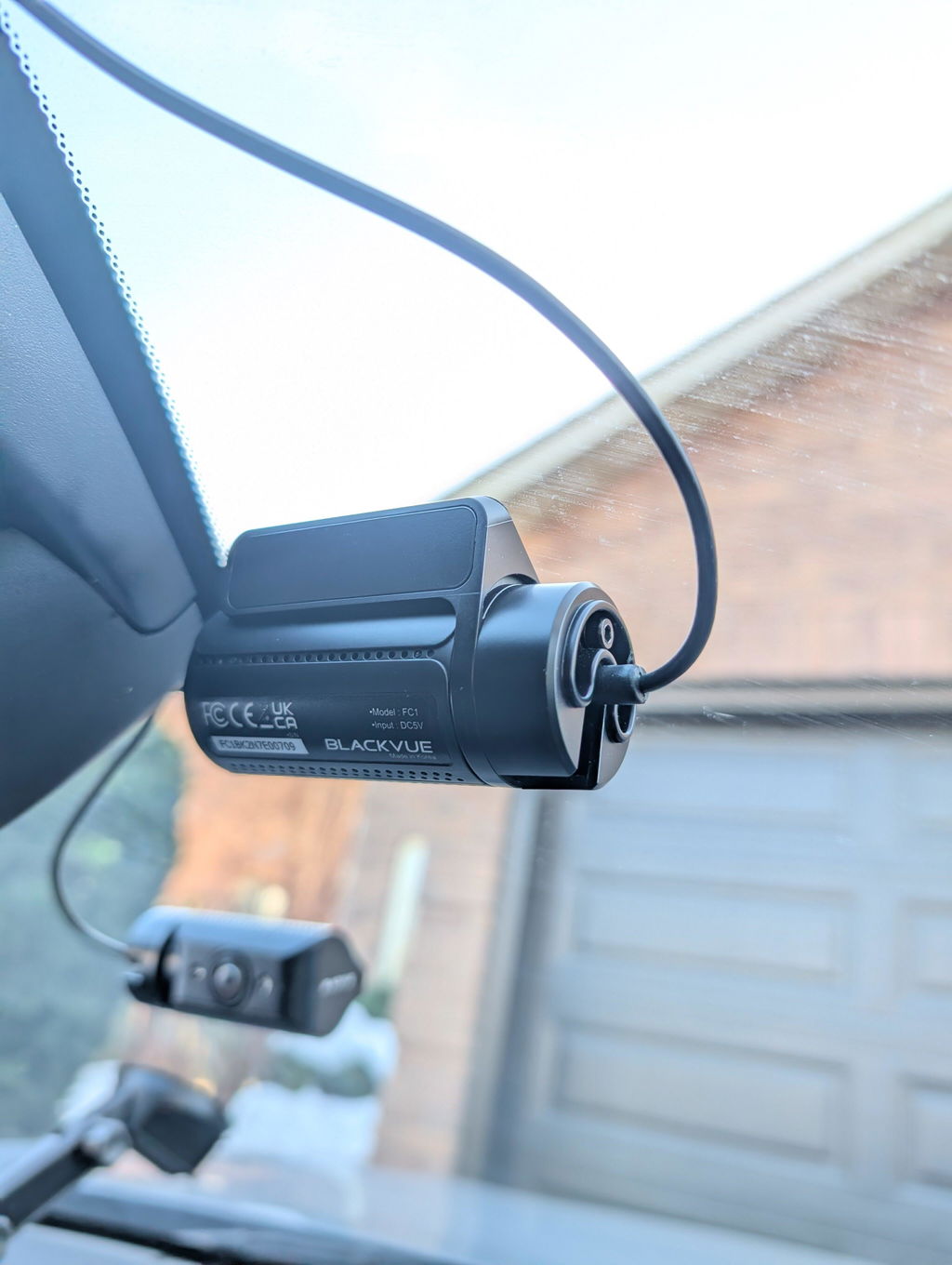

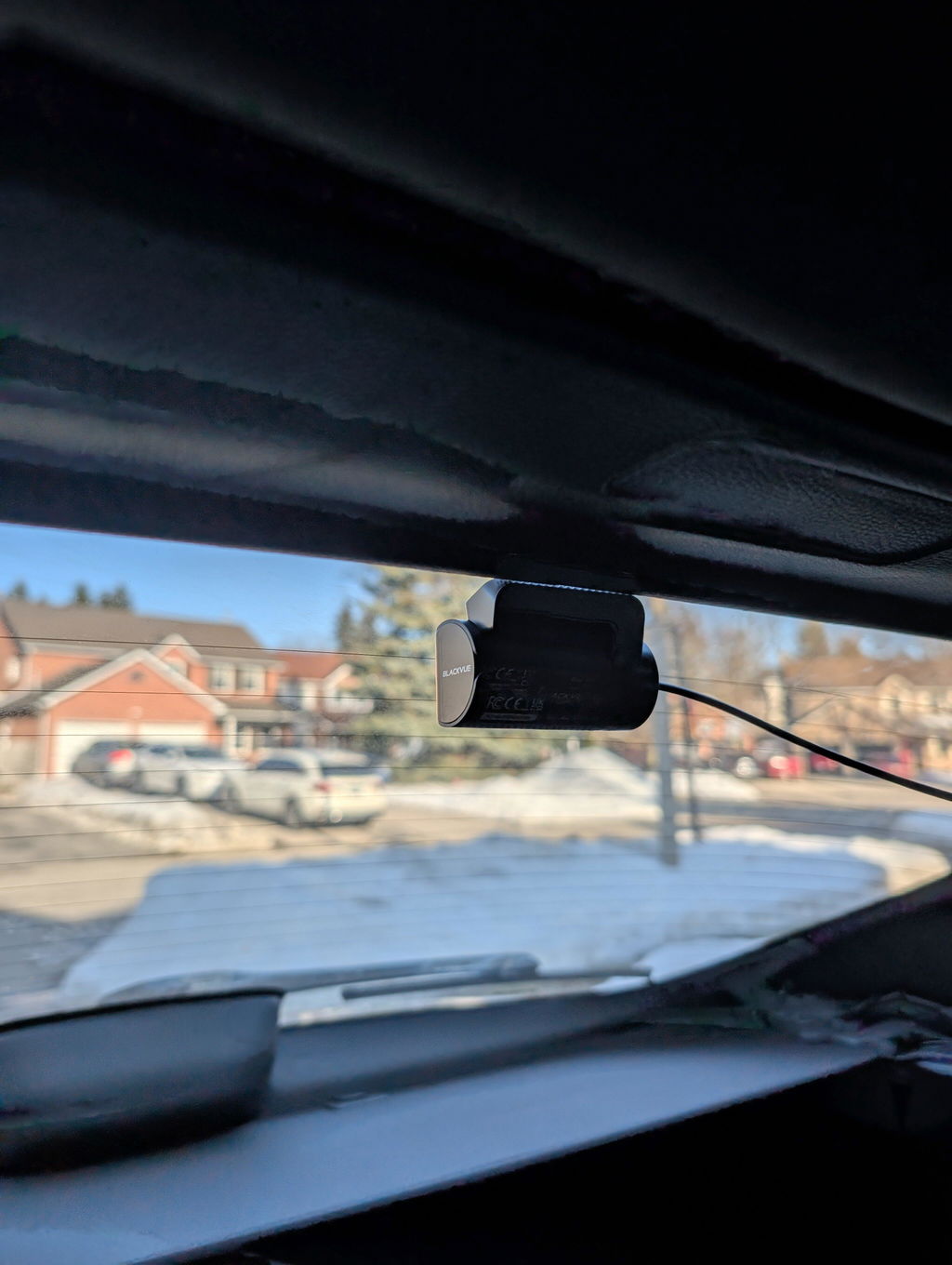

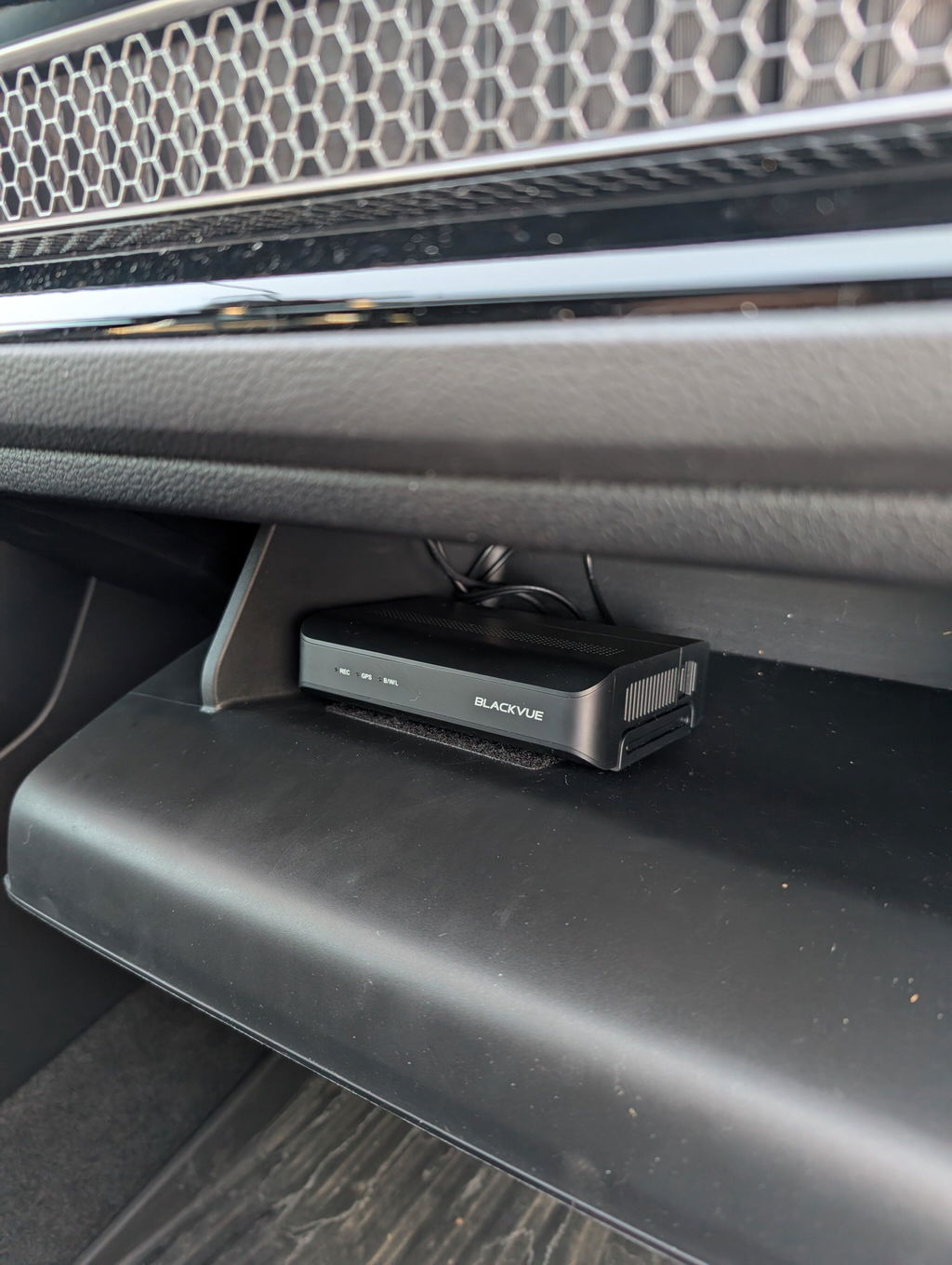

The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs.
Wireless “SOS” button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.
What's included
- Main Unit
- Front Camera
- Rear IR Camera
- Rear Camera
- SOS Button
- External GPS
- Main unit cigarette lighter power cable (3p)
- Main unit hardwiring power cable (3p)
- Camera connection cable
- microSD card
- microSD card USB reader
- Quick start guide
- Velcro strip
- Pry tool
- Main unit key
- Allen wrench
- Spare mount sticky pads
- Screws
- Cable clips
| Specifications | |
|---|---|
| Model Name | DR770X Box-3CH Pro |
| Channel |
3CH |
| Highlights |
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Product Dimensions |
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 512GB |
| Recording Modes |
Normal recording, Event recording (when the impact is detected in normal and parking mode), |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
|
| Viewing Angle |
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front / Rear / Interior IR Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Front / Rear / Interior Extreme: 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 51) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 b.g.n) |
| Cloud Compatible |
YES |
| GPS |
External (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
| Rear Camera IR Illumination |
Interior IR: 940nm (2 Infrared (IR) LEDs) |
| Button |
EB-1 button : Press the button – manual recording. |
| Operation Temperature |
-20°C – 70°C (-4°F – 158°F ) |
| Storage Temperature |
-20°C – 80°C (-4°F – 176°F ) |
| High Temp Cut Off |
Approx. 75 °C (167 °F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (GPS On/3CH) : Avg. 750mA/12V |
| Certifications |
Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM |
| Software |
BlackVue Viewer |
| Application |
BlackVue Application |
| Others |
Adaptive Format Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR770X Box / DR770X Box Truck |
Front: Full HD @60fps | Rear: Full HD @30fps | Interior: Full HD @30fps | ||
| 64GB | Extreme | 3 HR 40 MIN | |
| Highest | 4 HR 20 MIN | ||
| High | 4 HR 50 MIN | ||
| Normal | 6 HR 10 MIN | ||
| 128GB | Extreme | 7 HR 20 MIN | |
| Highest | 8 HR 40 MIN | ||
| High | 9 HR 40 MIN | ||
| Normal | 12 HR 20 MIN | ||
| 256GB | Extreme | 14 HR 40 MIN | |
| Highest | 17 HR 20 MIN | ||
| High | 19 HR 20 MIN | ||
| Normal | 24 HR 40 MIN | ||
| Bitrate (Mbps) Front + Rear + Interior |
Extreme | 16 + 10 + 10 | |
| Highest | 12 + 10 + 10 | ||
| High | 10 + 8 + 8 | ||
| Normal | 8 + 6 + 6 |
