BlackVue

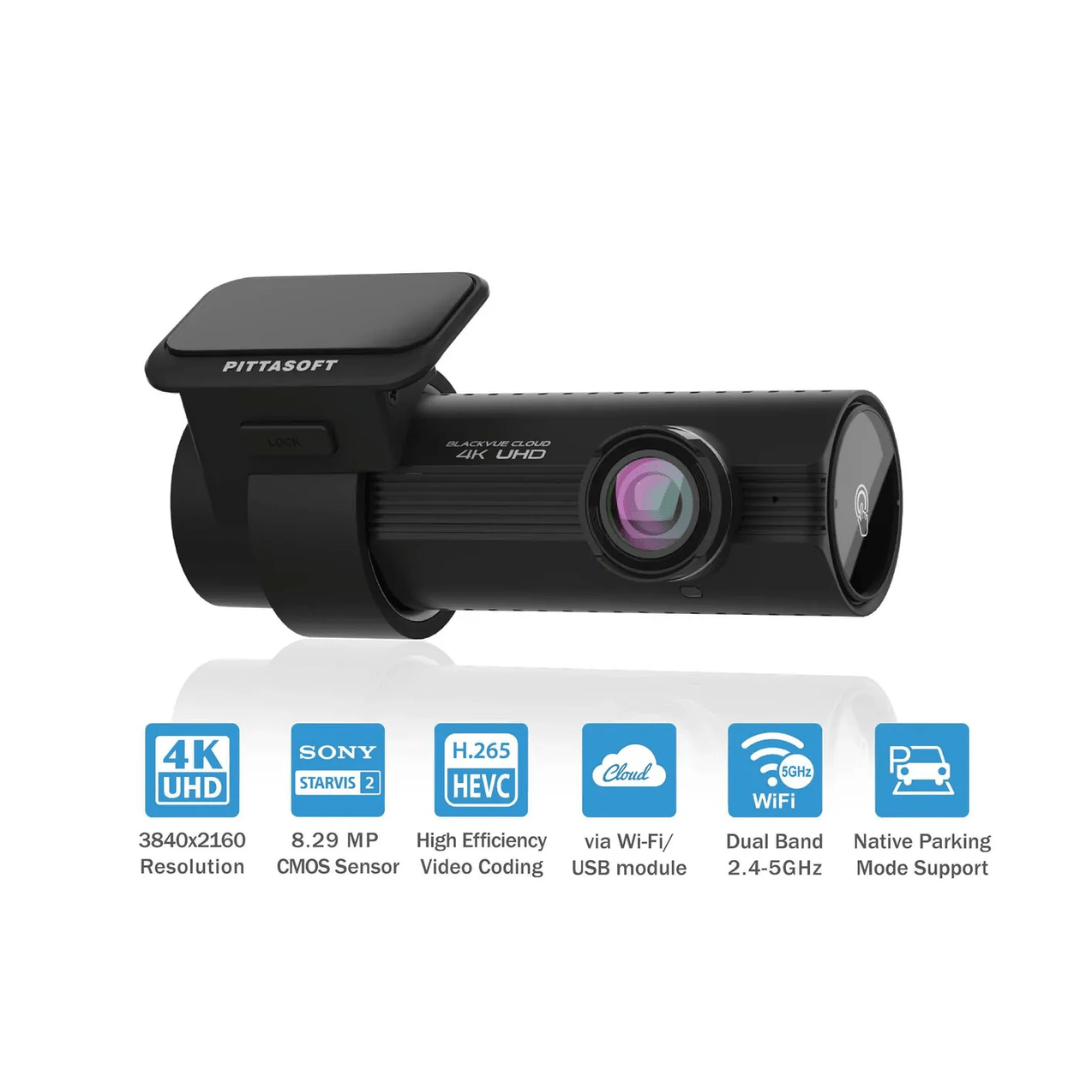

BlackVue DR970X Dash Cam | Universal
BlackVue DR970X Dash Cam | Universal
Earn [points_amount] when you buy this item.
Couldn't load pickup availability
Over the years I've captured everything on dashcams from track days, to near-miss accidents, and security footage. Thankfully I've never been in a crash, but if I ever need footage from an impact I know I can rely on BlackVue to deliver it with crisp audio and video quality, as I've personally had one for over 5 years!!
Whenever I need footage I just open up my app and download what I need. I've even used the Live feature to view my car's surroundings from anywhere as I have it connected to various Wi-Fi setups at my home and the store.
______
4K video and Wi-Fi connectivity
The DR970x is the top of the line BlackVue Dashcam featuring 4K video recording, Cloud access via Wi-Fi, and built-in GPS.
Both front and rear (optional) cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light. Record fluid videos at a wide 146° view angle Front, and 131° view angle Rear.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable to protect your vehicle battery.
Full HD Cloud Dashcam
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Native Parking Mode with included Hardwiring cable
DR970X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR970X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
What's included
LTE Connectivity Module (Optional)
Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100GLTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CMG100LTE is powered and connects via the USB port of your dashcam.
When connected to the CM100LTE, BlackVue DR970X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network.
| Specifications | |
|---|---|
| Model Name | DR970X-2CH Plus |
| Channel |
2CH |
| Highlights |
4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Product Dimensions |
Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 512GB |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) |
| Viewing Angle |
Front: Diagonal 146°, Horizonal 125°, Vertical 68° |
| Resolution Frame Rate |
Front: 4K (3840 x 2160) @ 30 fps |
| Video Codec |
H.265 (HEVC) / H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 60+10 Mbps *60Mbps bitrates only support in H.265(HEVC). |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
| Button |
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. |
| Operation Temperature |
-20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature |
-20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off |
Approx. 75 °C (167 °F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (GPS On/2CH): Avg. 480mA /12V |
| Certifications |
Front : FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
| Software |
BlackVue Viewer |
| Application |
BlackVue Application |
| Others |
Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (Optional) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR970X-2CH Plus/ DR970X-2CH LTE Plus/ DR970X Box-2CH Plus |
4K UHD @30fps + Full HD @30fps | ||
| 64GB | Extreme (H.265) | 1 HR 50 MIN | |
| Extreme (H.264) | 2 HR 35 MIN | ||
| Highest | 3 HR 40 MIN | ||
| High | 6 HR 05 MIN | ||
| Normal | 8 HR 15 MIN | ||
| 128GB | Extreme (H.265) | 3 HR 45 MIN | |
| Extreme (H.264) | 5 HR 15 MIN | ||
| Highest | 7 HR 20 MIN | ||
| High | 12 HR 15 MIN | ||
| Normal | 16 HR 40 MIN | ||
| 256GB | Extreme (H.265) | 7 HR 40 MIN | |
| Extreme (H.264) | 10 HR 35 MIN | ||
| Highest | 14 HR 50 MIN | ||
| High | 24 HR 35 MIN | ||
| Normal | 33 HR 25 MIN | ||
| 512GB | Extreme (H.265) | 15 HR 20 MIN | |
| Extreme (H.264) | 21 HR 15 MIN | ||
| Highest | 29 HR 40 MIN | ||
| High | 49 HR 15 MIN | ||
| Normal | 66 HR 50 MIN | ||
| Bitrate (Mbps) Front + Rear | Extreme (H.265) | 60 + 10 | |
| Extreme (H.264) | 40 + 10 | ||
| Highest | 25 + 10 | ||
| High | 12 + 8 | ||
| Normal | 8 + 6 |
