BlackVue DR770X Dash Cam | Universal
BlackVue DR770X Dash Cam | Universal
Couldn't load pickup availability
Over the years I've captured everything on dashcams from track days, to near-miss accidents, and security footage. Thankfully I've never been in a crash, but if I ever need footage from an impact I know I can rely on BlackVue to deliver it with crisp audio and video quality, as I've personally had one for over 5 years!!
Whenever I need footage I just open up my app and download what I need. I've even used the Live feature to view my car's surroundings from anywhere as I have it connected to various Wi-Fi setups at my home and the store. The optional LTE feature will let you view anywhere, anytime!
______
Full HD 60FPS video and Wi-Fi connectivity

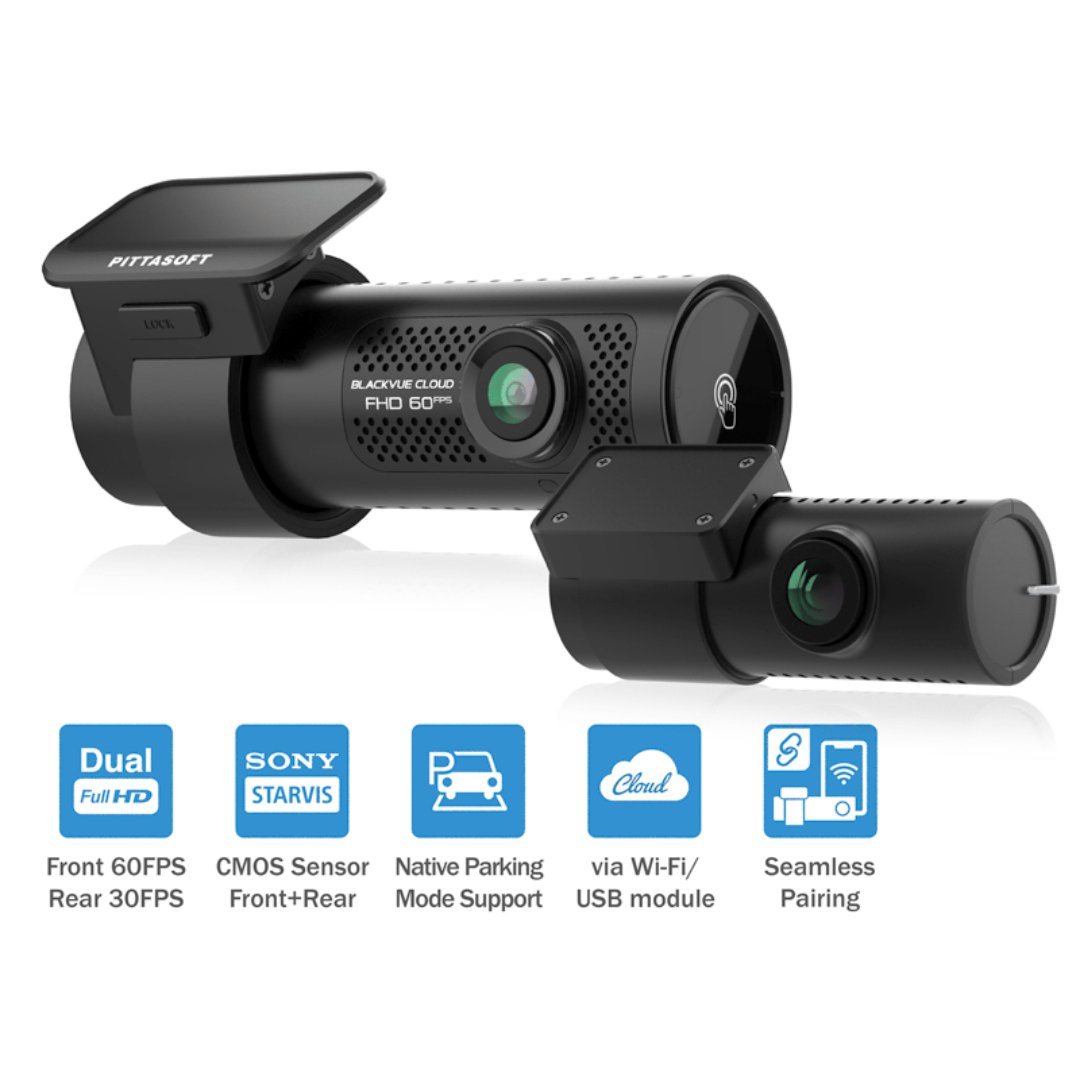

The DR770X-2CH is a dual-channel dash cam with BlackVue Cloud connectivity.
Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light. Record fluid videos at a wide 139° view angle.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable to protect your vehicle battery.

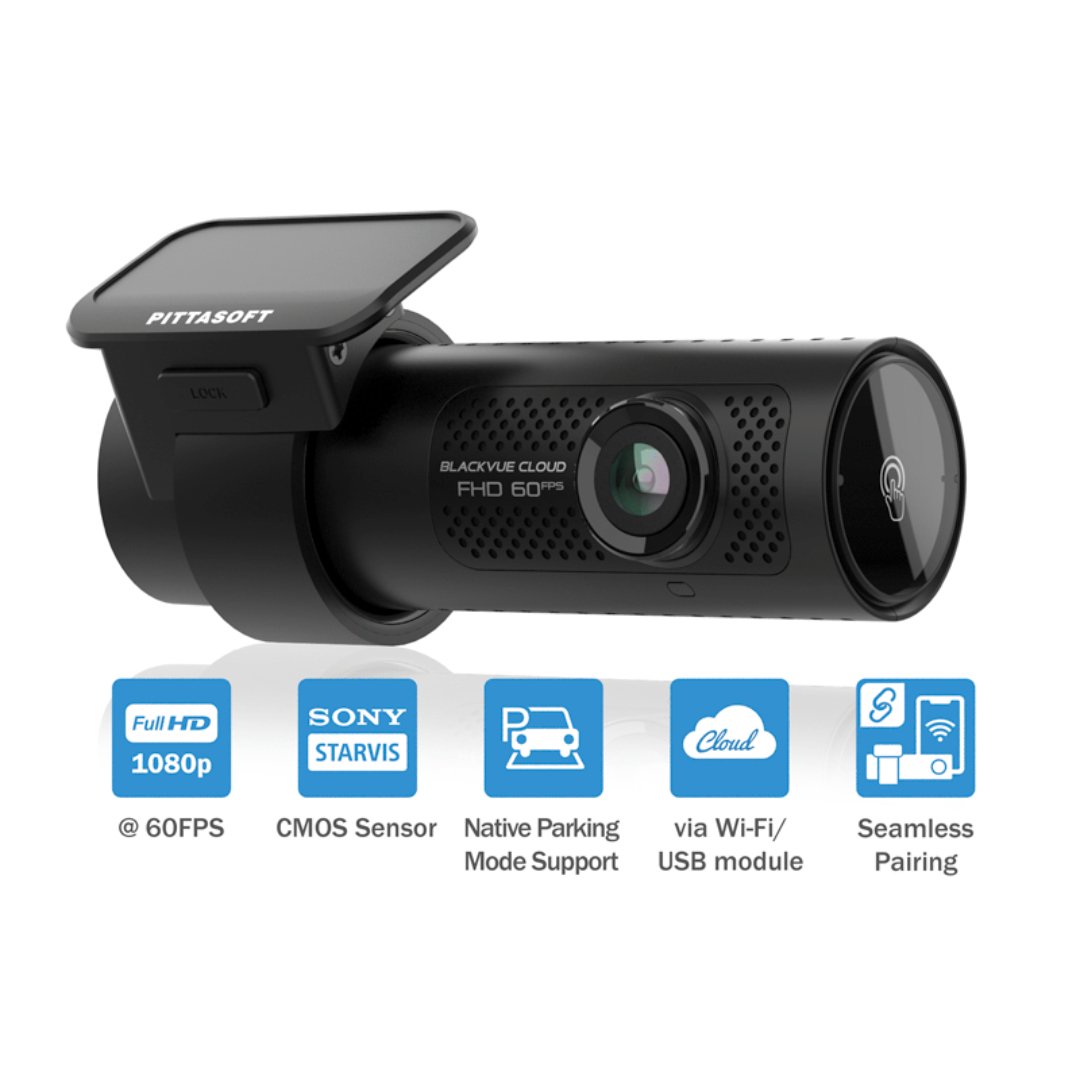

Full HD Cloud Dashcam
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Native Parking Mode with included Hardwiring cable
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
What's included
- Front Camera
- Rear Camera (Optional if 2CH is selected)
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
| Specifications | |
|---|---|
| Model Name | DR770X-2CH |
| Channel |
2CH |
| Highlights |
Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
| Product Dimensions |
Front: Black / Width 118.5mm x Height 36mm / 104g |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front: Full HD (1920 x 1080) @ 60 fps |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 b.g.n) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
| Button |
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. |
| Operation Temperature |
-20 °C − 80 °C (-4 °F − 176 °F) |
| Storage Temperature |
-20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off |
Approx. 80 °C (176 °F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (GPS On/2CH): Avg. 380mA / 12V |
| Certifications |
Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
| Software |
BlackVue Viewer |
| Application |
BlackVue Application |
| Others |
Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR770X-2CH / DR770X-2CH IR / DR770X-2CH TRUCK / DR770X-2CH Plus / DR770X-2CH IR Plus / DR770X-2CH TRUCK Plus |
Full HD @60fps + Full HD @30fps | ||
| 16GB | Extreme | 55 MIN | |
| Highest | 1 HR 25 MIN | ||
| High | 1 HR 50 MIN | ||
| Normal | 2 HR 20 MIN | ||
| 32GB | Extreme | 1 HR 50 MIN | |
| Highest | 2 HR 50 MIN | ||
| High | 3 HR 40 MIN | ||
| Normal | 4 HR 40 MIN | ||
| 64GB | Extreme | 3 HR 40 MIN | |
| Highest | 5 HR 40 MIN | ||
| High | 7 HR 20 MIN | ||
| Normal | 9 HR 20 MIN | ||
| 128GB | Extreme | 7 HR 20 MIN | |
| Highest | 11 HR 20 MIN | ||
| High | 15 HR 40 MIN | ||
| Normal | 18 HR 40 MIN | ||
| 256GB | Extreme | 14 HR 40 MIN | |
| Highest | 22 HR 40 MIN | ||
| High | 31 HR 20 MIN | ||
| Normal | 37 HR 20 MIN | ||
| Bitrate (Mbps) Front + Rear | Extreme | 25 + 10 | |
| Highest | 12 + 10 | ||
| High | 10 + 8 | ||
| Normal | 8 + 6 |
