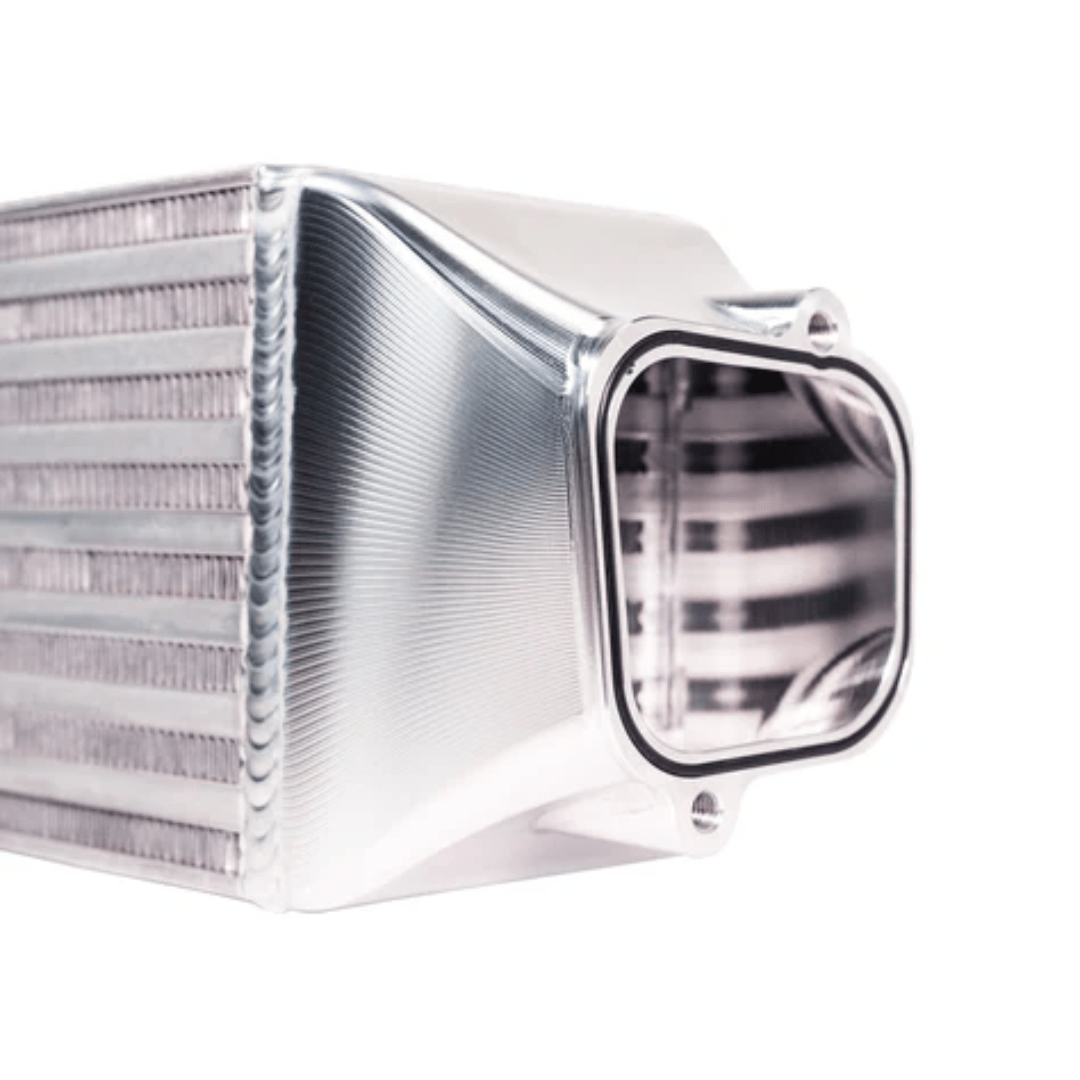

PRL Intercooler Upgrade (High Volume) | 22+ Civic 1.5T & Si, 23+ Integra A-Spec

Fits:

• 2022+ Honda Civic 1.5T (Hatch FL1, Sedan FE1)
• 2022+ Honda Civic Si (Sedan FE1)
• 2023+ Acura Integra Base/A-Spec (Hatch DE4)

Bundles the intercooler, charge pipe upgrade, and high volume outlet together — buying these separately leaves you with redundant adapter parts and a higher total cost. All install hardware included.

_______

The 1.5T in these platforms is genuinely prone to heat soak on the factory intercooler, raising detonation risk and costing real power through elevated charge air and cylinder temps under spirited driving or added power. PRL's core is rated for 550+ horsepower (they've pushed 600+ in testing) at 26 x 4.5 x 5.9", using machined billet aluminum end tanks at the factory mounting points.

The charge pipe upgrade steps the cold-side piping up from the factory 1.25" to 2.5", with the hot-side outlet kept at factory diameter to aid turbo spool. The High Volume Intercooler Outlet eliminates the bottleneck where the factory intercooler meets the charge pipe, smoothing the transition into the larger charge pipe diameter, and includes a methanol injection bung positioned to give methanol enough time and space to properly atomize — useful for tuning, safety, and additional cooling.

PRL's own testing showed up to a 108°F drop in charge air temperature versus the factory intercooler, a 40% increase in cooling efficiency, and up to 9 whp gained on an otherwise stock vehicle — real numbers, not marketing estimates.

Performance Gains

• Up to 108°F reduction in charge air temperature vs. factory
• Up to 40% increase in cooling efficiency
• Up to 9 whp gain on a stock vehicle
• Increased engine safety margin

Features

• 550+ horsepower rated bar-and-plate core (26 x 4.5 x 5.9")
• Machined billet aluminum end tanks, factory mounting points
• 2.5" cold-side charge pipe (up from factory 1.25")
• High Volume Outlet with methanol injection bung
• Complete bundle — no leftover adapter parts
