HKS Intercooler Kit | 23+ Civic Type R FL5, 23+ Integra Type S DE5

Fits:

• 2023+ Honda Civic Type R (Hatch FL5)
• 2023+ Acura Integra Type S (Hatch DE5)

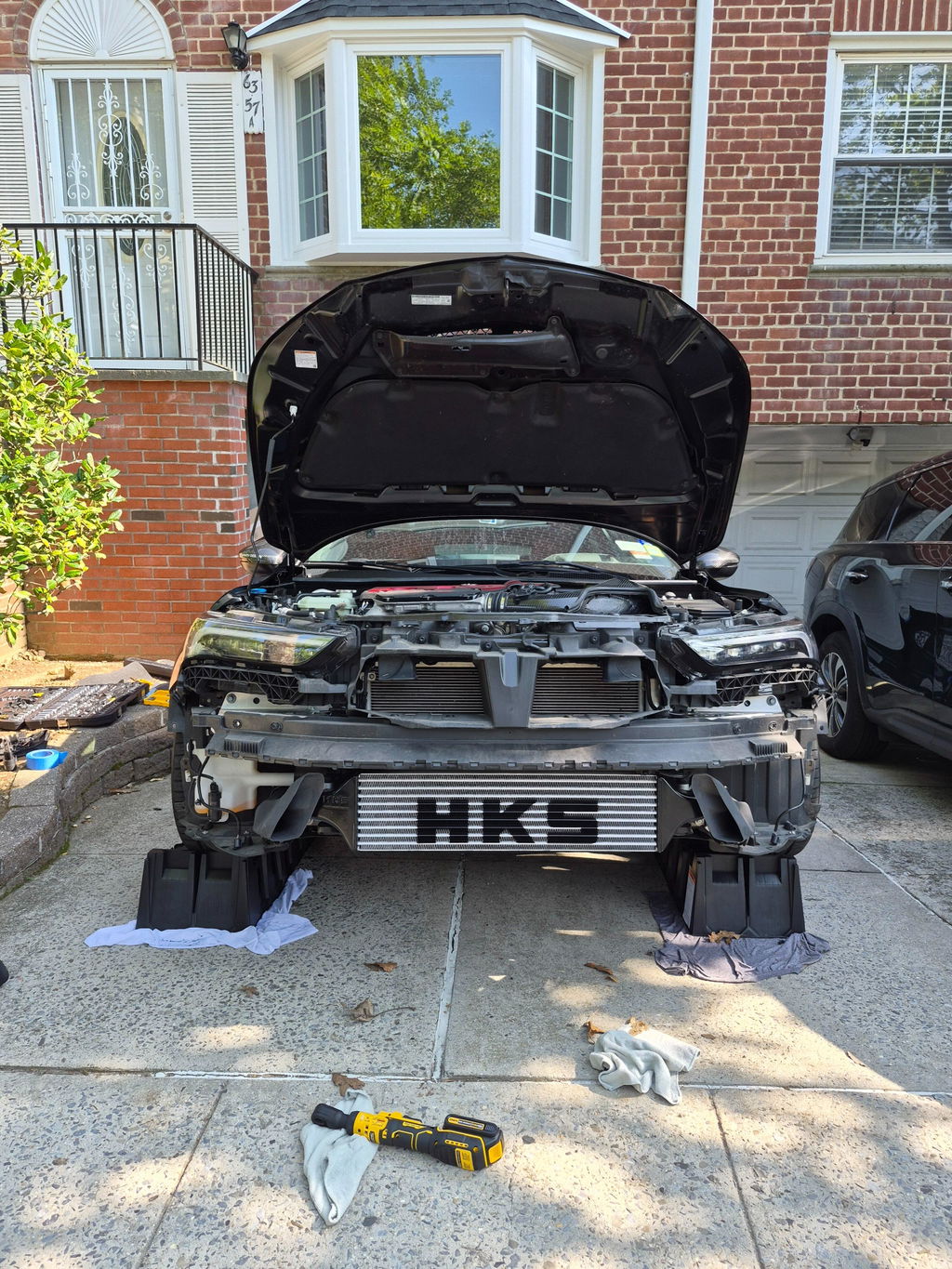

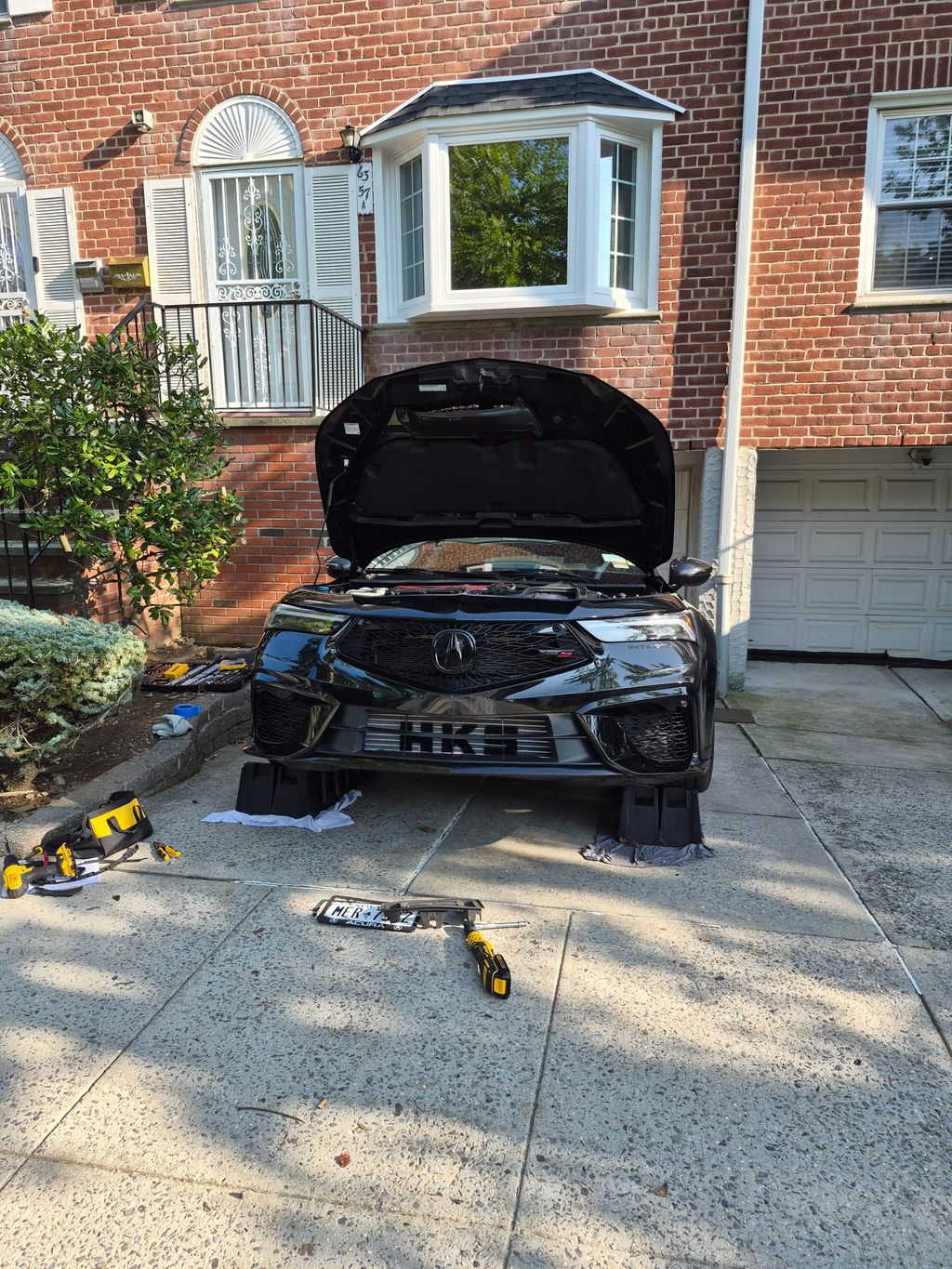

Core-only installation requires modifying the bumper's air guide and relocating the outside air temperature sensor — no reinforcement modification needed. Piping installation requires shaving a body bracket. The Full Kit requires both modifications. Available as Core only, Core + PRL Piping Kit, or Core + HKS Piping Kit.

_______

The factory intercooler core on the FL5 and DE5 runs out of cooling capacity once you start pushing boost, and HKS built this core specifically to fix that ceiling. A 22.4% larger core area brings real gains: HKS measured an intercooler outlet temperature of 30.3°C versus 56.0°C on the stock core at 7000 RPM, an efficiency jump from 67% to 88%. The core is compatible with the factory piping if you're not ready to upgrade that yet.

HKS's piping kit swaps the factory rubber hose sections for larger-diameter aluminum piping, eliminating the pressure loss that comes from rubber hose expanding under high boost. The aluminum pipes get a mirror-buff finish, and both the cast pipe and core carry the HKS logo for a clean, finished look under the hood.

Features

• 22.4% larger core area than stock for significantly better cooling capacity
• Intercooler outlet temp of 30.3°C vs. 56.0°C stock at 7000 RPM (88% vs. 67% cooling efficiency)
• Aluminum cast end tanks vs. stock resin construction
• Compatible with OEM piping if purchased as core only
• Piping kit eliminates pressure loss from rubber hose expansion under boost
• Mirror-buff finished aluminum piping, HKS branding on core and cast pipe
• Available as Core only, Core + PRL Piping Kit, or Core + HKS Piping Kit
