PRL Intercooler Piping Kit | 17-21 Civic Type R FK8

PRL charge pipe upgrade kit utilizes a smooth flowing, larger diameter cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:

1. Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.

2. Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Also, we have managed to melt the factory rubber hose a handful of times during our track adventures on our shop car. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).

3. Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.

4. Optimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hose(s) offer even better fitment than factory.

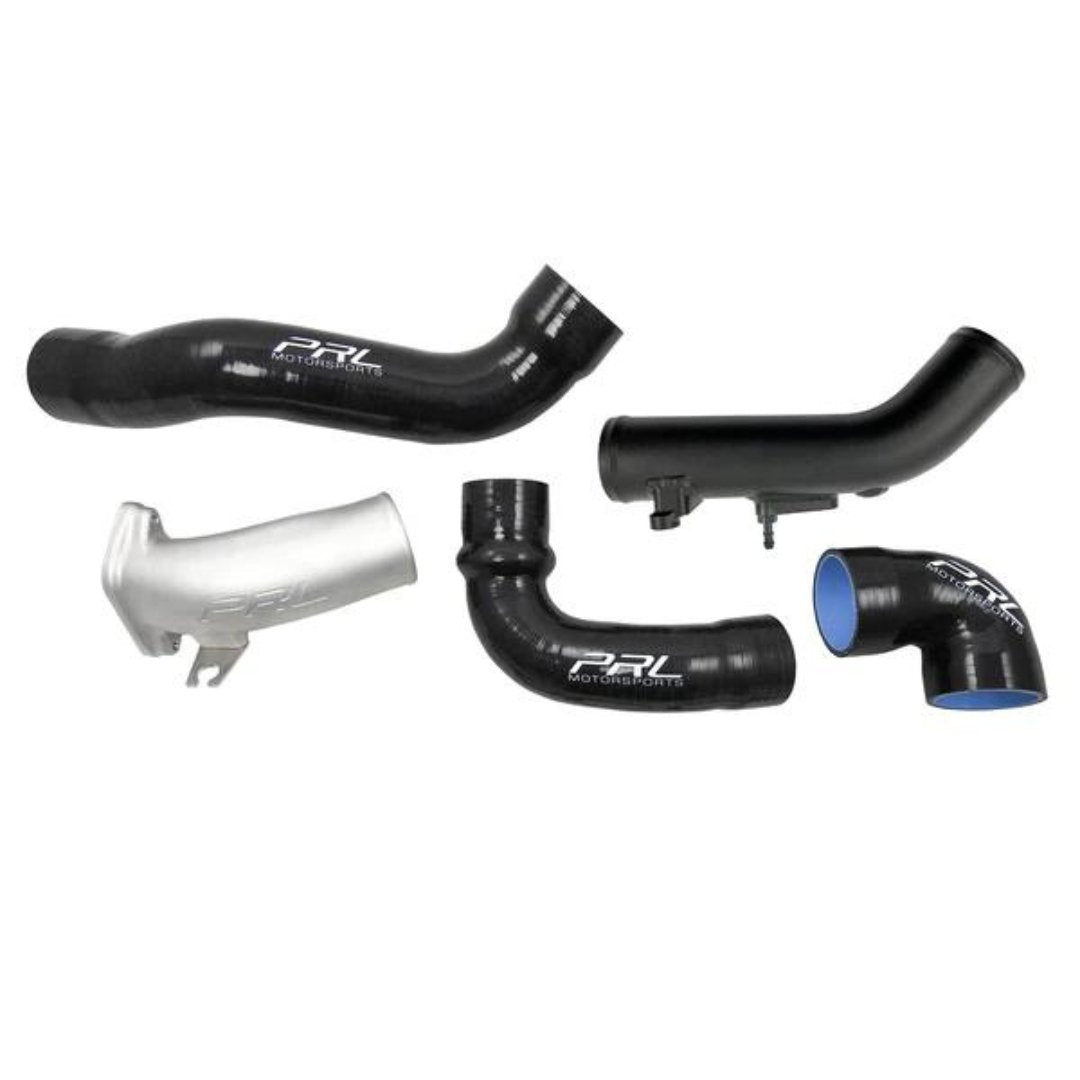

• (1) Cast Aluminum Intercooler Outlet Piece
• (1) Aluminum Charge Pipe, Powdercoated Wrinkle-Black w/ fitting(s) to retain factory vacuum connection(s) & 1/8" NPT Auxiliary Service Port
• (1) Charge Pipe Bracket
• (2) M5 x 0.80 x 10mm BHCS Bolt
• (3) 4-ply silicone couplers
• (6) 304 Stainless Steel Lined clamps
• All hardware needed for install
