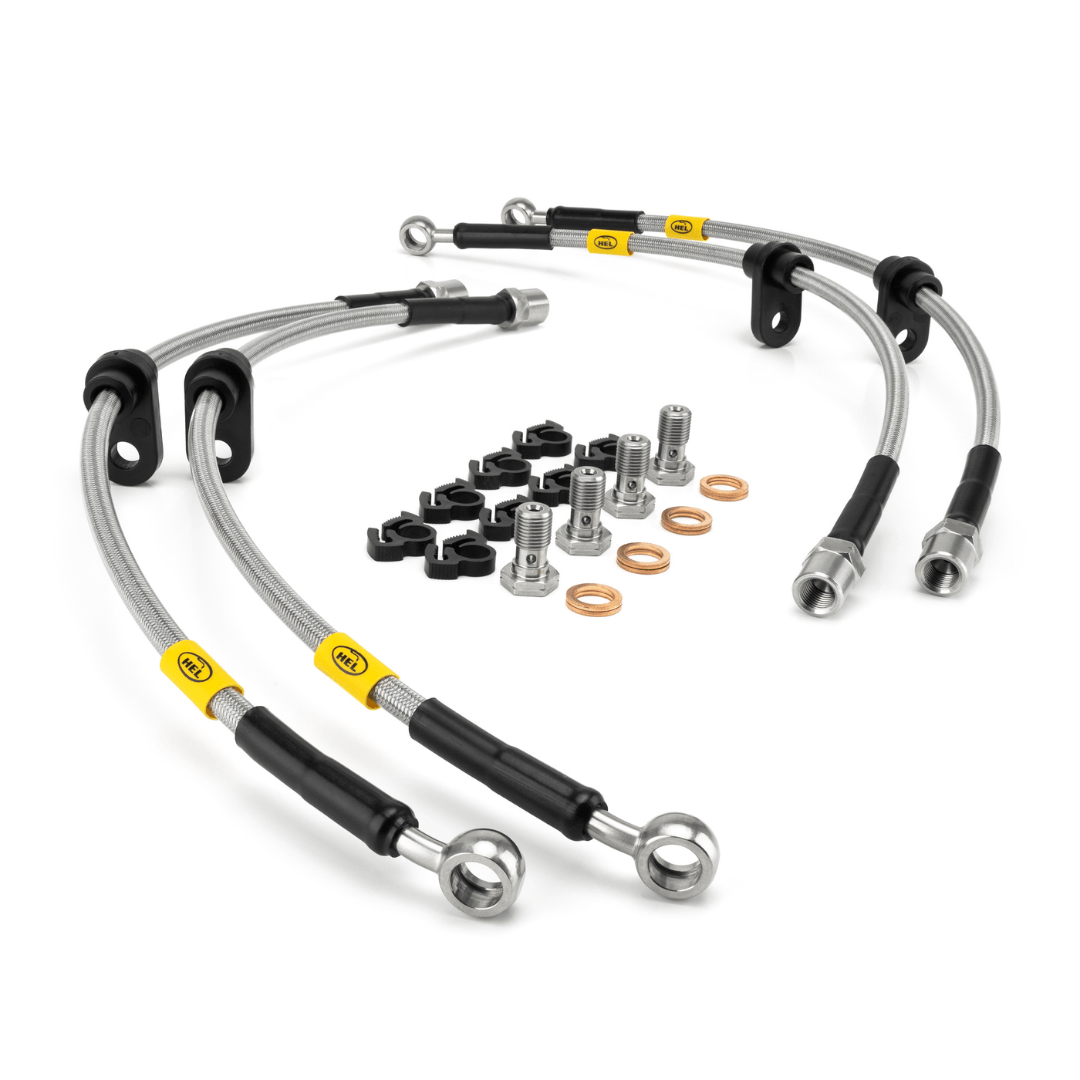

HEL Braided Brake Lines | 23+ Civic Type R FL5

Fits:

• 2023+ Honda Civic Type R FL5

Note: Quantity 1 is for 1x set of Front and Rear Braided Lines, complete for one vehicle.

_______

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most.

By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Specifications

• Line inner material PTFE

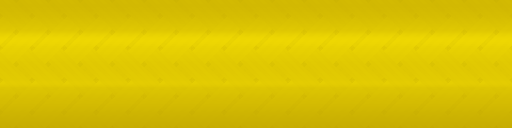

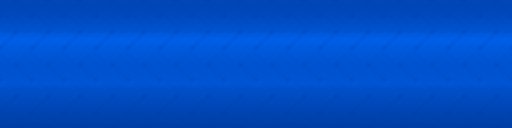

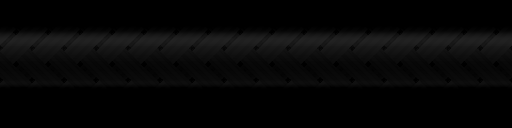

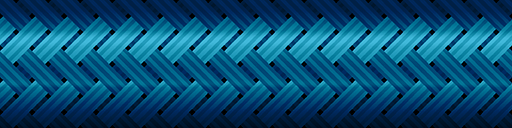

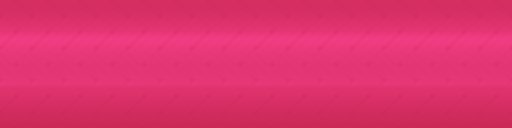

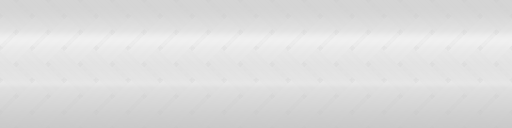

• Line outer material Stainless steel (303/304) and protective PVC cover
• Fittings material Stainless steel (303/304)
• Temperature range -70°C to 260°C (-94°F to 500°F)
• Inside diameter 3.5mm (0.138")
• Outside diameter 7.5mm (0.295")
• Maximum working pressure 290 Bar (4206 PSI)
• Burst pressure 870 Bar (12618 PSI)
• Minimum bend radius 38mm (1.496")
