BlackVue
BlackVue DR770X LTE Dash Cam | Universal
BlackVue DR770X LTE Dash Cam | Universal
Earn [points_amount] when you buy this item.
受取状況を読み込めませんでした
Over the years I've captured everything on dashcams from track days, to near-miss accidents, and security footage. Thankfully I've never been in a crash, but if I ever need footage from an impact I know I can rely on BlackVue to deliver it with crisp audio and video quality, as I've personally had one for over 5 years!!
Whenever I need footage I just open up my app and download what I need. I've even used the Live feature to view my car's surroundings from anywhere as I have it connected to various Wi-Fi setups at my home and the store. With the new LTE models you can be anywhere, and as long you have an active data plan with your preferred carrier you can view your dash cam from anywhere!
Carrier support:
US: AT&T, T-Mobile
Canada: Rogers, Telus
______
\
Full HD 60FPS video, Wi-Fi, and LTE connectivity

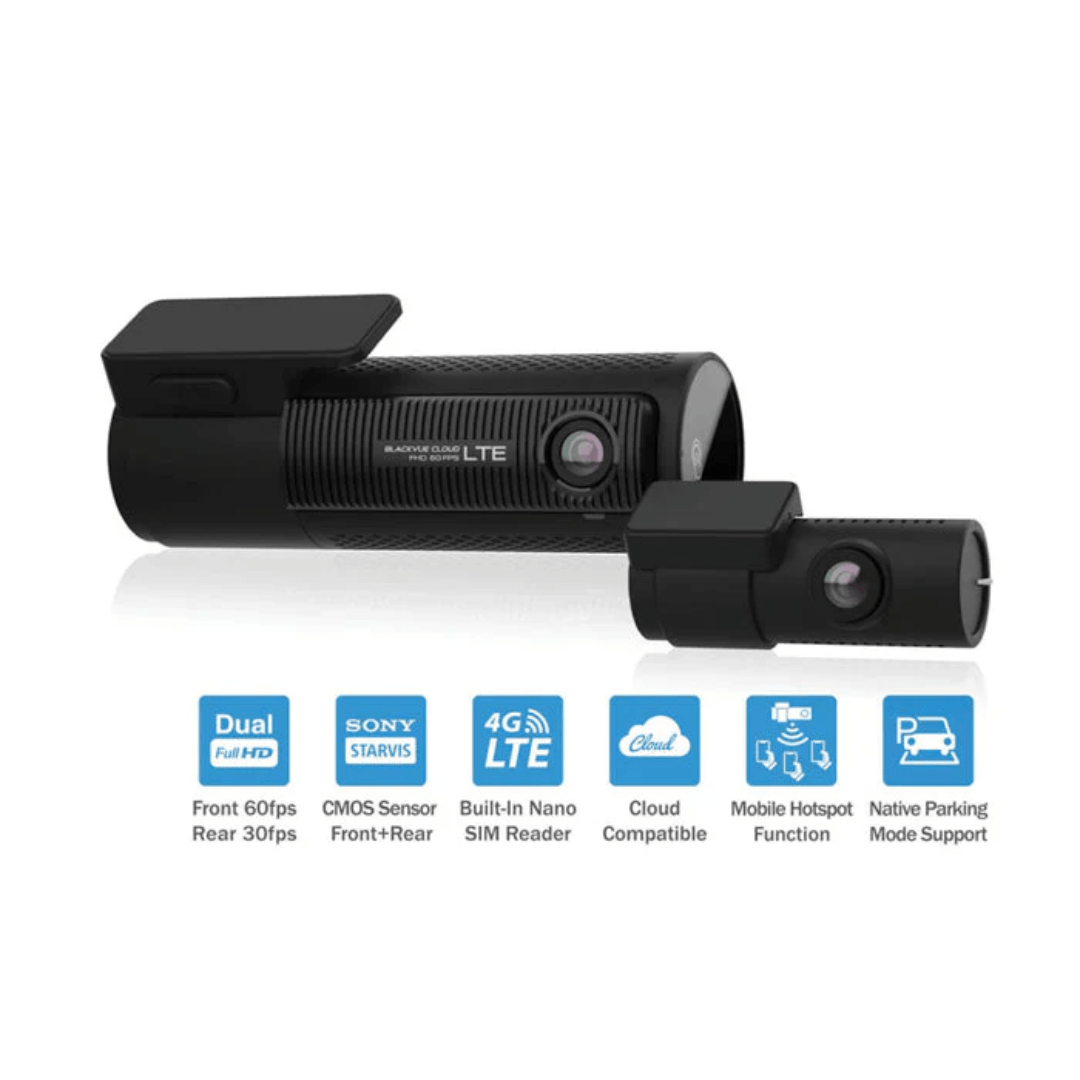

The DR770X-2CH LTE is a dual-channel dash cam with BlackVue Cloud connectivity. LTE gives you access to your BlackVue over the Cloud from anywhere, anytime! Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light. Record fluid videos at a wide 139° view angle.
This stealthy dashcam also comes with built-in LTE, GPS, Wi-Fi and native Parking Mode support via included hardwiring cable to protect your vehicle battery.
Full HD Cloud Dashcam
Built-in 4G LTE connectivity makes connecting to the Cloud hassle-free.
With Mobile Hotspot Function, use your BlackVue as a Wi-Fi router for up to five devices.
Dual Full HD 1080p cameras (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your car at a wide 139° view angle.
Sony STARVIS™ imaging sensors—a benchmark in video clarity under low light—equip both front and rear cameras, so whether you are driving or parked, crucial details are captured perfectly.
Native Parking Mode with included Hardwiring cable
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
What's included
| Specifications | |
|---|---|
| Model Name | DR770X-2CH LTE (NA) |
| Channel |
2CH |
| Highlights |
Built-in 4G LTE, Sony STARVIS image sensors |
| Product Dimensions |
Front: Black / Width 137.6 mm x Height 43 mm / 159 g |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front: Full HD (1920×1080) @ 60 fps |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11n (2.4~2.4835 GHz)) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band: GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
| Button |
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature |
-20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature |
-20 °C − 70 °C (-4 °F − 158 °F) |
| High Temp Cut Off |
Approx. 80 °C (176 °F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V |
| Certifications |
Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC |
| Software |
BlackVue Viewer |
| Application |
BlackVue Application |
| Others |
Built-in 4G LTE module compatible with Nano-SIM. |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | Built-in (SIM card included) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR750-2CH LTE / DR750-2CH IR LTE / DR750X-2CH LTE Plus / DR750X-2CH IR LTE Plus |
Full HD @60fps + Full HD @30fps | ||
| 16GB | Extreme | 55 MIN | |
| Highest | 1 HR 25 MIN | ||
| High | 1 HR 50 MIN | ||
| Normal | 2 HR 20 MIN | ||
| 32GB | Extreme | 1 HR 50 MIN | |
| Highest | 2 HR 50 MIN | ||
| High | 3 HR 40 MIN | ||
| Normal | 4 HR 40 MIN | ||
| 64GB | Extreme | 3 HR 40 MIN | |
| Highest | 5 HR 40 MIN | ||
| High | 7 HR 20 MIN | ||
| Normal | 9 HR 20 MIN | ||
| 128GB | Extreme | 7 HR 20 MIN | |
| Highest | 11 HR 20 MIN | ||
| High | 15 HR 40 MIN | ||
| Normal | 18 HR 40 MIN | ||
| 256GB | Extreme | 14 HR 40 MIN | |
| Highest | 22 HR 40 MIN | ||
| High | 31 HR 20 MIN | ||
| Normal | 37 HR 20 MIN | ||
| Bitrate (Mbps) Front + Rear | Extreme | 25 + 10 | |
| Highest | 12 + 10 | ||
| High | 10 + 8 | ||
| Normal | 8 + 6 |
