MAPerformance Oil Cooler Kit | 16-21 Civic 1.5T, Si

MAPerformance Oil Cooler Kit | 16-21 Civic 1.5T, Si

Precio habitual $799.99 USD
Precio habitual $888.88 USD Precio de oferta $799.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Earn 1 Point on this purchase. Learn more


  • 2016 - 2021 Honda Civic 1.5T
  • 2017 - 2020 Honda Civic Si


Not many things can kill a motor as fast as overly high oil temps, and MAP are not alone in finding that the stock Civic X 1.5T system is not up to the task. From lapping days to daily driving, and everything in between our MAPerformance CivicX 1.5T Oil cooler kit will do everything you need and more!

MAPerformance designed the two-piece filter adapter to not only to fit as we would like but also to function perfectly providing nearly zero restrictions or pressure drop in the system. Due to the lack of factory oil pressure monitoring, MAP felt it was very important to add the 1/8" NPT port to the side of the housing, as to provide the key information of oil temperature, pressure, or both depending on the sensor utilized.

To mount the cooler, MAPerformance utilizes 304 Stainless hand Tig welded bracket produced at their USA facility. This bracket not only looks stylish for many years but is also a 100% bolt-on solution meaning no cutting or trimming is required to any part of your car(You do remove a few small pieces of plastic) keeping the installation as easy as can be!

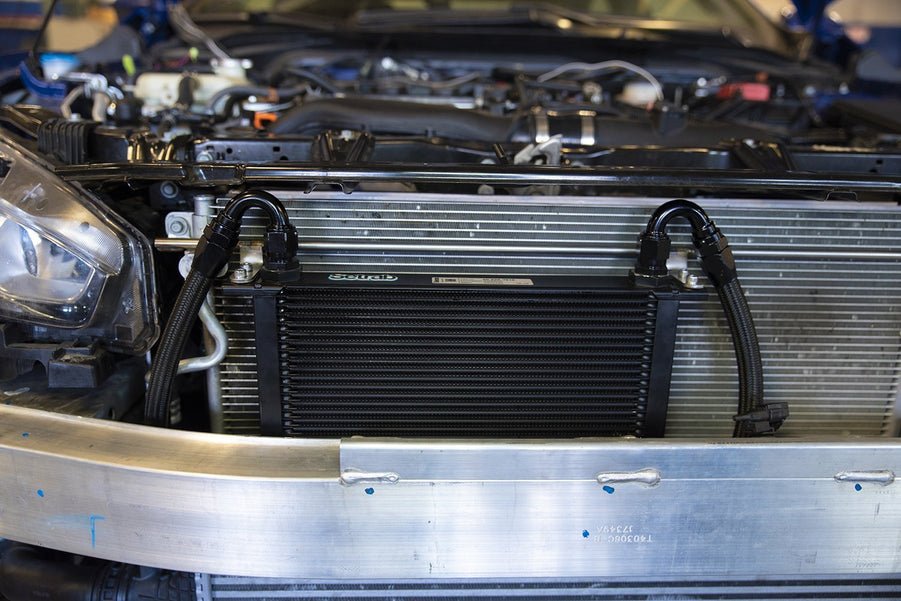

For the cooler, MAP selected one of the largest SETRAB cores that would fit, and keep in a reasonable budget. SETRAB has been an industry leader in the cooling industry for generations, and there is no better fit! There were multiple reasons for this decision, the obvious being that it would pull as much heat out of the system as possible and cool the oil to reasonable temperatures. The secondary reasoning is that the L15B7 has a very small oil capacity and being able to add nearly a full quart to the system will help in both temperature and also helping keep the oil pressure stable at all times!

To round it all off, the lines are USA Made SQUIRRELLY PERFORMANCE lightweight braided hose, and their hand-assembled fittings to assure you get proper hoses every time!


  • MAP Custom Billet Aluminum oil filter adapter to retain ground clearance for factory filter, and clear the factory undertray, designed in house for the 1.5T Civic platform
  • 1/8" NPT port to add Pressure or Temperature gauges
  • Lightweight Braided Squirrelly Performance AN lines and fittings
  • Large capacity SETRAB oil cooler core, that with lines adds nearly 1qt of oil capacity to the system
  • All stainless hardware to prevent corrosion
  • MAP USA Made stainless Tig welded mounting bracket


  • 100% Direct Fit
  • Made in the USA
  • Increased Oil Capacity
  • Increased Oil Cooling
  • Maintains Ground clearance for oil cooler
