Infinity Design Carbon Intake | 23+ Civic Type R FL5, 23+ Integra Type S DE5

Infinity Design Carbon Intake | 23+ Civic Type R FL5, 23+ Integra Type S DE5

Precio habitual $1,510.00 USD
Precio habitual Precio de oferta $1,510.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Earn [points_amount] when you buy this item.

Box Finish
Add Inlet Pipe

Fits:

  • 2023+ Honda Civic Type R FL5
  • 2023+ Acura Integra Type S DE5

_______

Performance Increase : 17HP, 20ft-lb (factory tune)

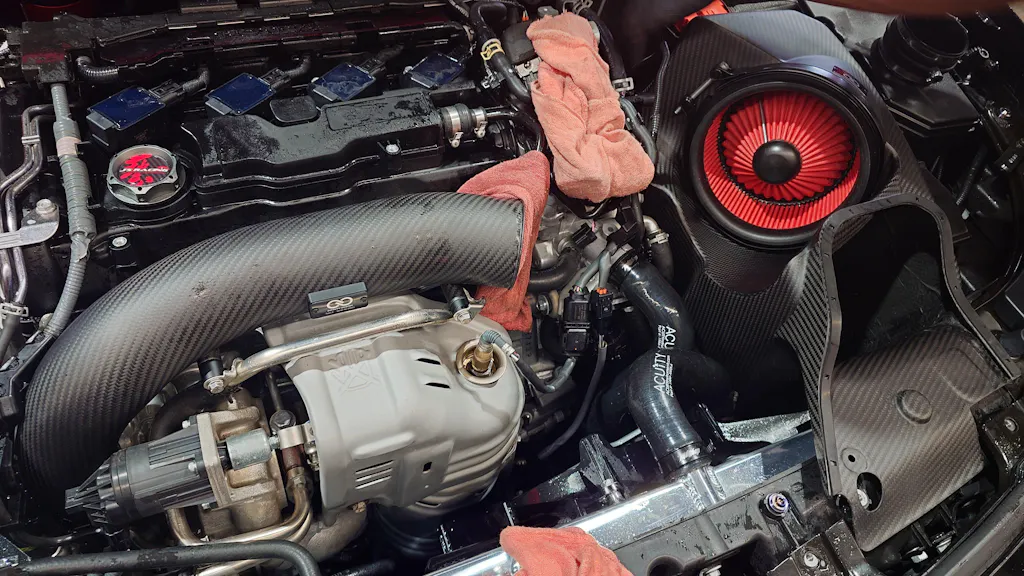

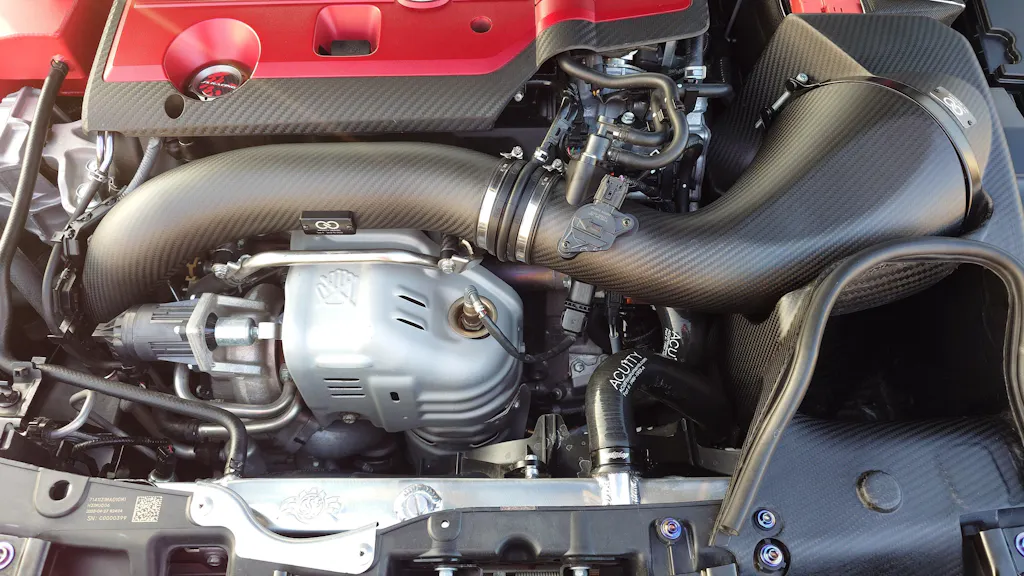

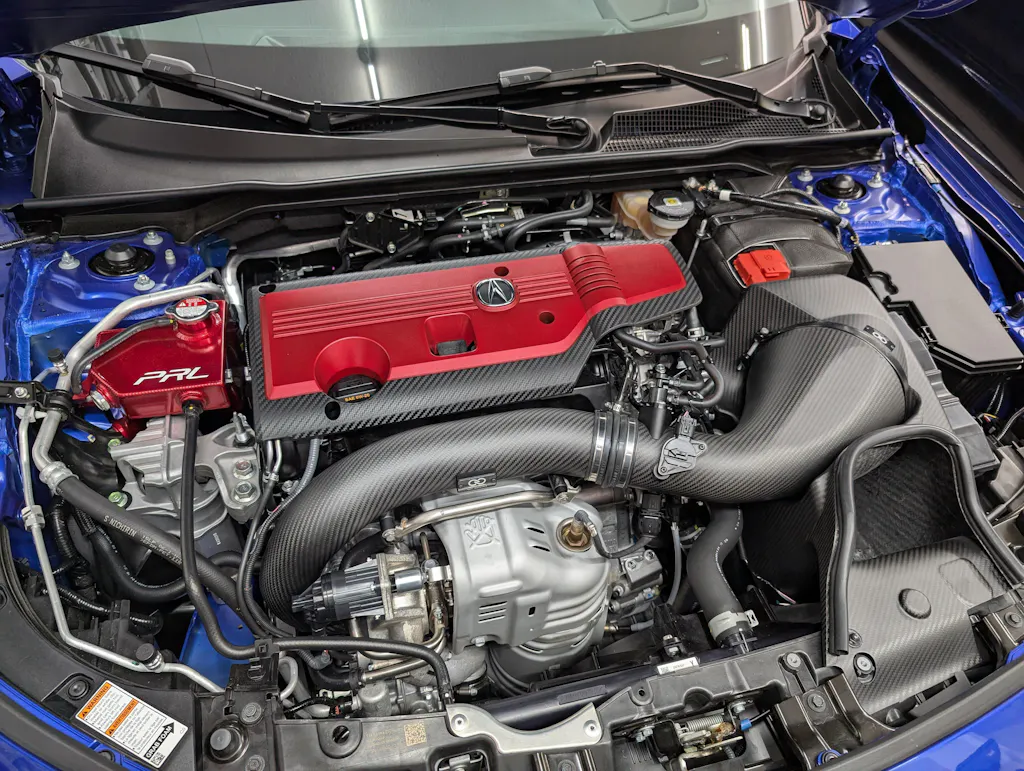

Infinity Design took a radical approach to the design using a large expanding tube with integrated MAF housing feeding into a completely redesigned airbox with significantly larger volume and a 80% enlarged opening.

Our signature double cone large surface area air filter is used with it's 175mm opening. This is housed in the air filter housing and the system is clamped together.

In addition to the intake system we have also developed a stand alone turbo inlet tube which increases volume and has a smoother radius into the turbo reducing turbulence.

Development Process

During the development process we created multiple prototypes and models. ​The OEM system has a small opening and uses a standard panel filter with a small cross sectional area with a simple tube.



We decided to create a system which followed the same path but with significantly enalrged air opening, add our signature large venturi tube mating to a vastly larger volume airbox.

Doubling the cross sectional area of the front inlet feed giving more a more than adequate increase on available air. After some iterations this method gave the best air flow under CFD analysis showing less turbulence than the OEM system with vastly increased airflow.

The results on both the dyno (see below) and road driving were excellent.  Vastly improved throttle response, low end torque response improvements

Under normal but spirited driving the engine feels even more eager to accelerate at every rpm whether under partial load or full load.

Air Intake Temperatures & Heat Soak

Intake temperatures were tested on the stock intake system by placing thermocouples before the air filter on both the OEM and Infinity systems.The OEM system manages ambient temperatures as low as 20mph and immediately under full load.  Under full load high rpm acceleration the ambient temperatures remains at ambient.  In terms of temperature, the OEM system sets the benchmark.  The infinity Intake matches the OEM intake.

Air Filtration

Within the beautifully shaped carbon shaped enclosures sits our bespoke short stack high surface area filter larger than any cone filter design currently on offer on the market with a huge opening of 170mm (6 3/4″) and is designed to take full advantage of the intake tubes by altering the direction of the airflow towards the outer walls.

By placing the air filters in front of the inlet tube we achieve the largest velocity stack ever seen for the FA24 engine and which also has the best laminar flow.  It is important to note that we have painstakingly opted for the largest possible air filter for a various number of reasons.  Not only does a larger air filter allow for more air flow and therefore power but it also does not block up for longer and continues to be efficient at it’s main purpose which is to filter the air of harmful elements.

Dyno tests were performed under strict controlled conditions on an independent Maha MSR500 dynamometer in order to show a true and realistic result.

The stock car made almost exactly what the manufacturer quotes with 330 BHP with a perfect and natural power curve.After fitting our intake system  347 BHP  was achieved.

A significant and clear gains of 17 BHP.

From 2500-7000rpm the torque and power increases consistently through the rpm range

At 5500rpm the engine gains significant HP and torque.

Run down losses remains identical between the two tests as did the ambient temperature.

Both sets of tests were carried out with identical starting oil and coolant temperatures.

Dyno Line Key:

Dotted Red Line / Solid Red Line  – Flywheel Calculated HP (wheel + loss) with Infinity Intake
Dotted Red Line / Dotted Yellow Line – Flywheel Calculated (wheel + loss) HP Stock Intake

Specifications
  • 1 x Inlet Tube with integrated CNC MAF  Boss1 x Large Air Filter Housing / Inlet Duct
  • 1 x Bespoke Infinity Design Air Filter
  • 1 x black metal clamps
  • 1 x EPDM Flexi hoses with clamps
  • 1 x Bracket
  • 1 x Fitting Kit
