CSF Radiator | 23+ Civic Type R FL5, 23+ Integra Type S DE5
CSF Radiator | 23+ Civic Type R FL5, 23+ Integra Type S DE5
No se pudo cargar la disponibilidad de retiro
Fits:
-
2023+ Honda Civic Type R (Hatch FL5)
-
2023+ Acura Integra Type S (Hatch DE5)
_______
CSF is pleased to announce the new High-Performance All-Aluminum Radiator for the 2023+ FL5 Civic Type R and DE5 Integra Type S.
CSF vs OEM
The original OE radiator from Honda is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds and hard driving. Turbo cars get hot, and the K20C1 is no exception. Anything you can do to help keep temperatures in check will improve longevity of your motor and components.
Just like the HPD Race Radiator, the CSF FL5 Civic Type R / DE5 Integra Type S Radiator features the latest 5mm fin technology. The smaller fins significantly increase the heat exchange surface area improving overall cooling efficiency. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Overall, testing has revealed that the CSF radiator decreases engine coolant temperatures by 6-8% compared to the factory radiator.

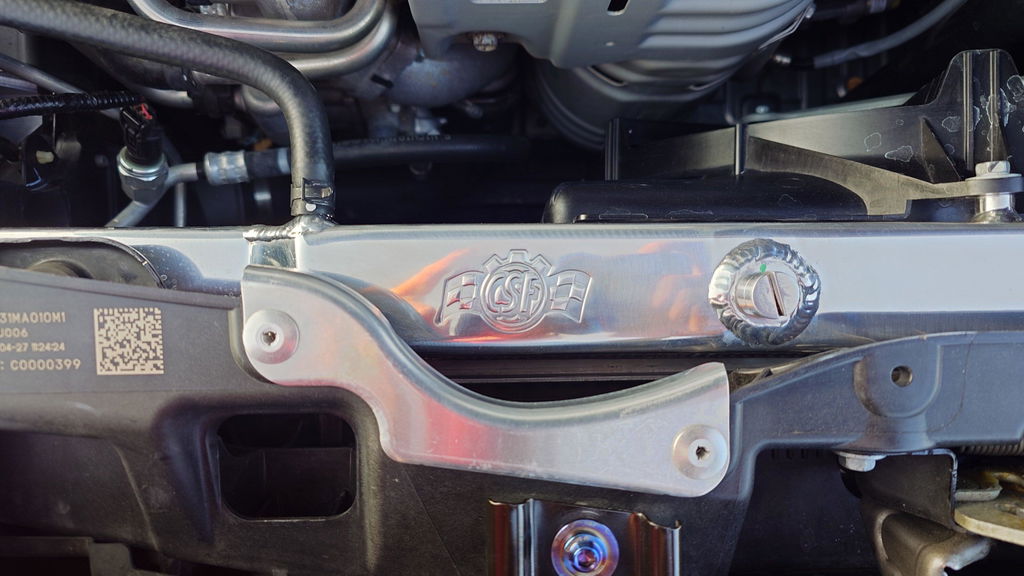

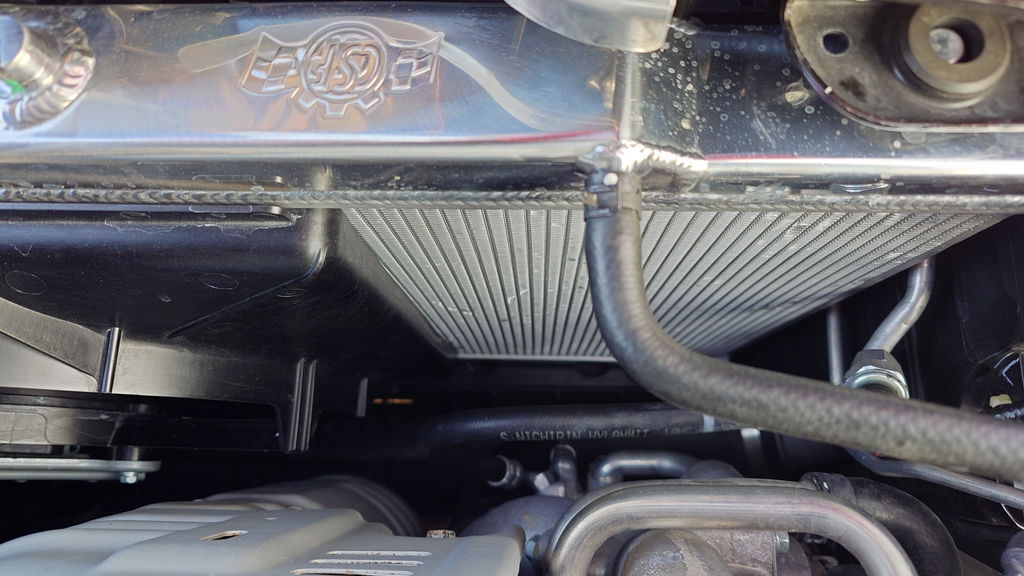

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
| Feature | CSF | OEM |
|---|---|---|
| # Core Rows | 2 | 1 |
| # Cooling Tubes | 105 | 118 |
| # Cooling Fin Rows | 106 | 119 |
| Fin Height/Width | 5mm | 5.3mm |
| Core Thickness | 42mm | 28mm |
| Core Material | Aluminum | Aluminum |
| Tank Material | Aluminum | Plastic |
| Construction | 100% TIG Welded | Crimp on Gasket |
Testing CSF vs OEM
Testing was performed on a FL5 Civic Type R tuned to 294 whp and equipped with an upgraded/larger Front Mount Intercooler. The larger front mount intercooler has been shown to raise engine coolant temperatures by ~7%. This is due to the airflow restriction over the radiator. Test results show a decrease of of 8°C engine coolant temperature with the CSF Radiator vs OEM. As you can see, a radiator upgrade will be very important to anyone running a larger intercooler. The upgraded radiator will also be beneficial to anyone tracking their car.
